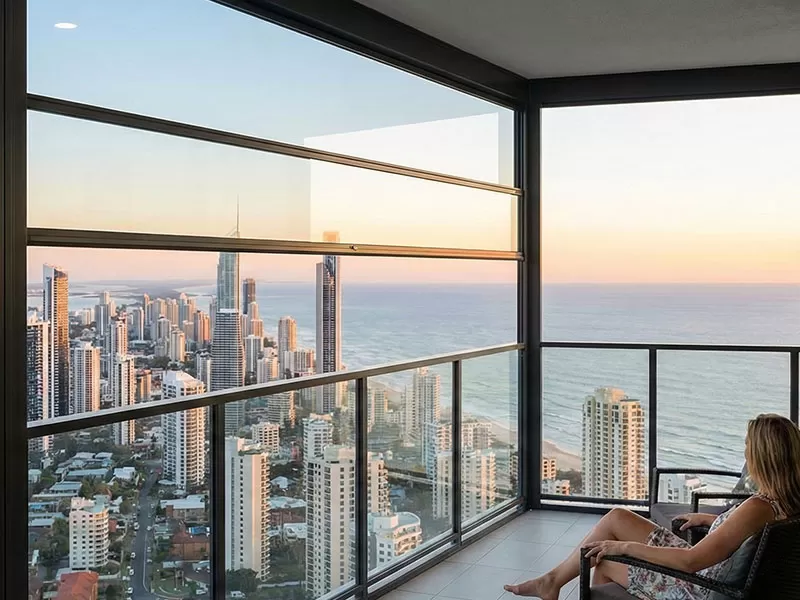

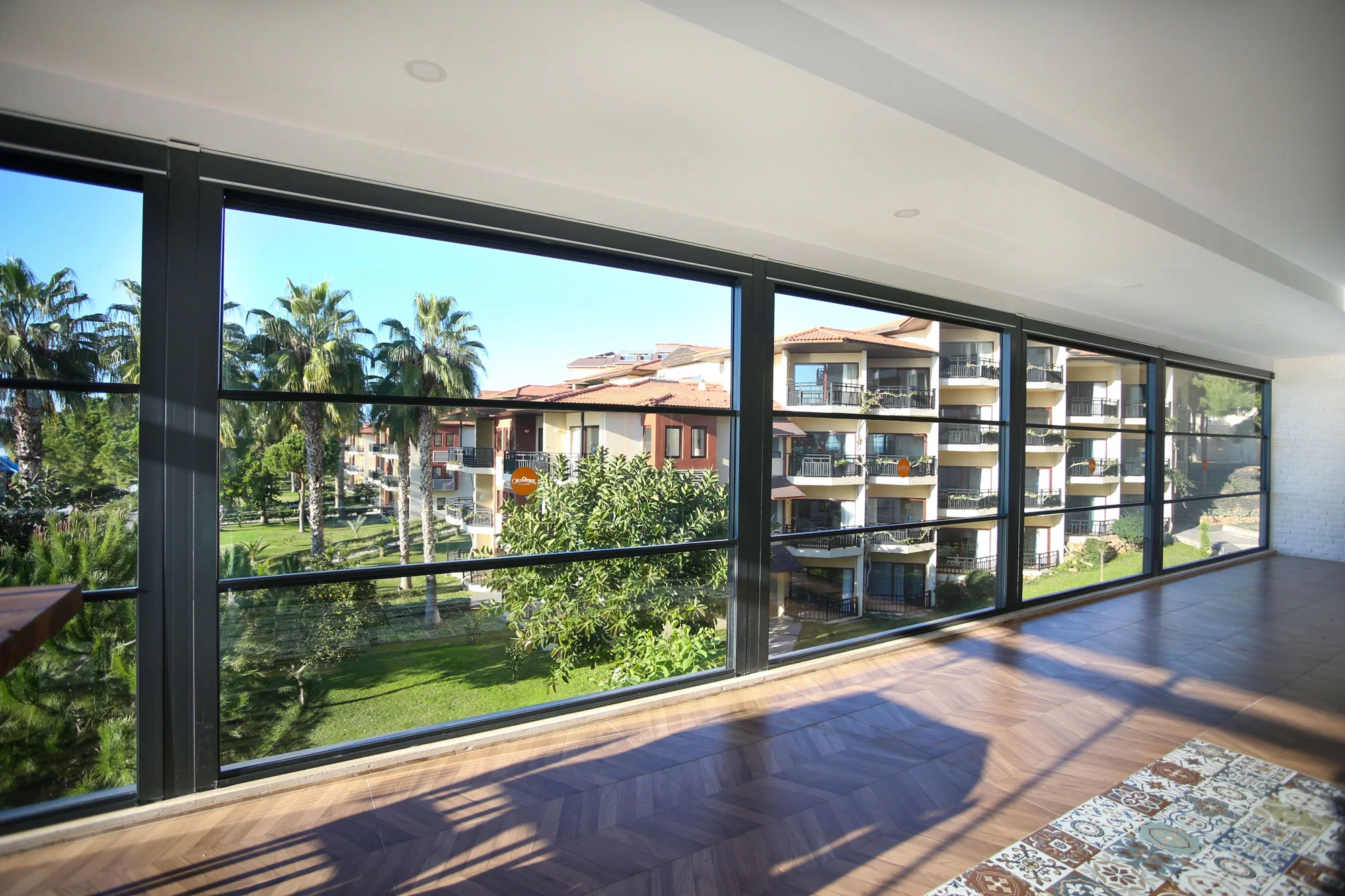

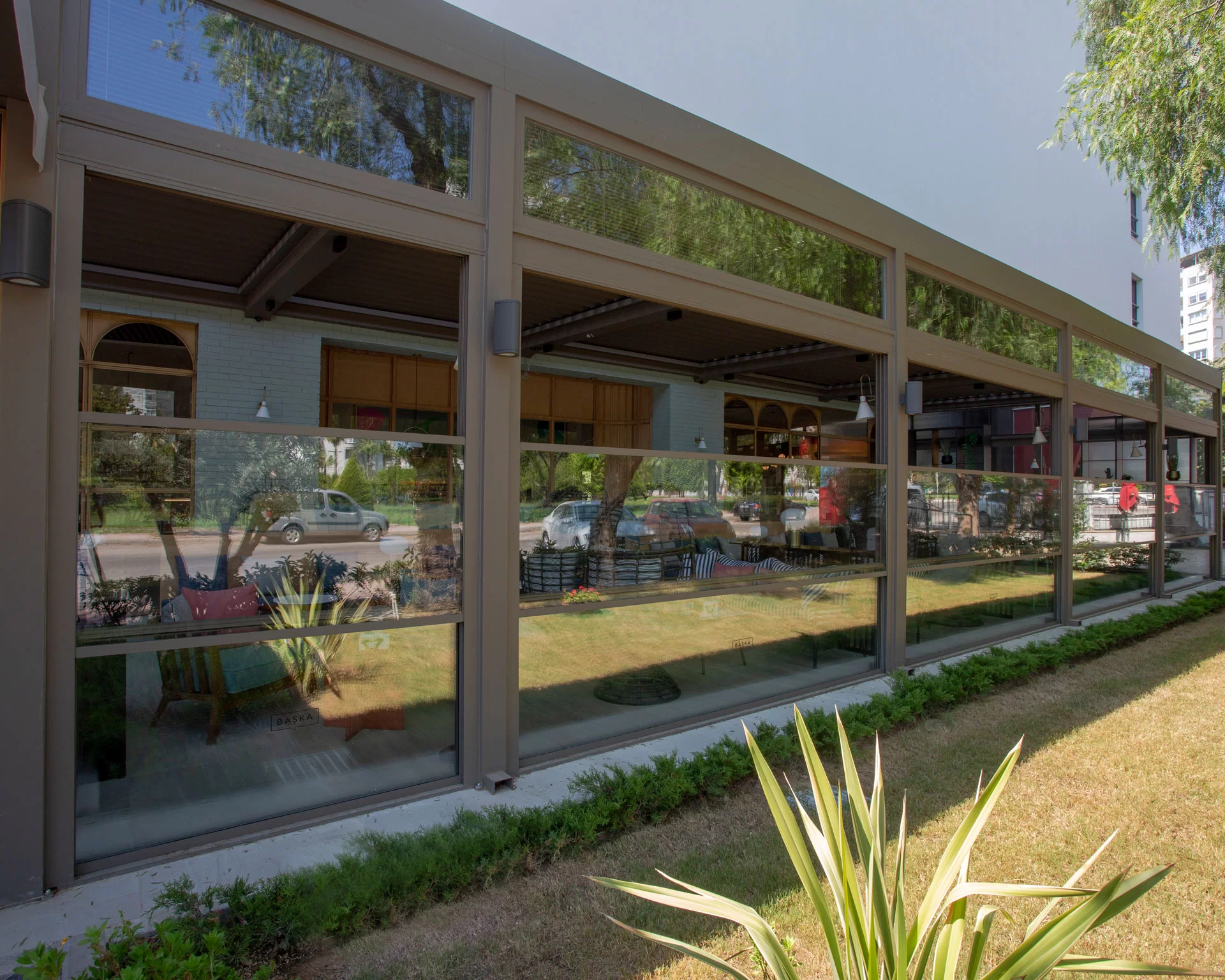

Guillotine Glass Enclosures for Vertical Openings

The standard guillotine system opens and closes by moving the glass panels up and down in vertical motion.

• Typically designed as a 3-wing system with insulated or single-glass options

• Can also be produced as 2-, 3-, or 4-panel configurations depending on project needs

• One sash is fixed, while the other two are movable

• Movable sashes can be stopped at any level—half-open, fully open, or anywhere in between

• The system can be configured to collect the glass above or below, according to preference


When fully closed, the system provides excellent water and air tightness. With insulated glass, it delivers near-perfect results in sound and thermal performance. Modern, elegant profiles allow it to adapt easily to any architectural style.

The Cotill Series guillotine system is engineered to be exceptionally quiet, thanks to a specially designed belt and gear system and a motor compartment housed in a dedicated aluminium box at the top of the system.

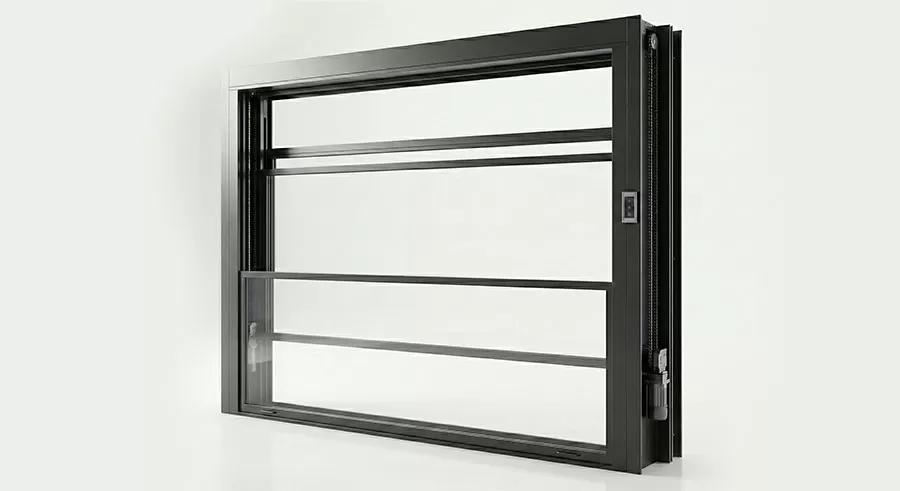

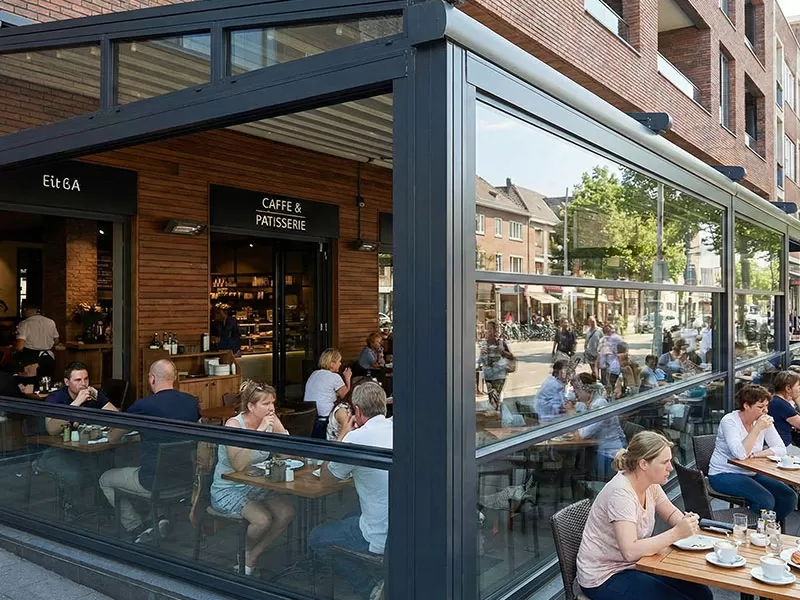

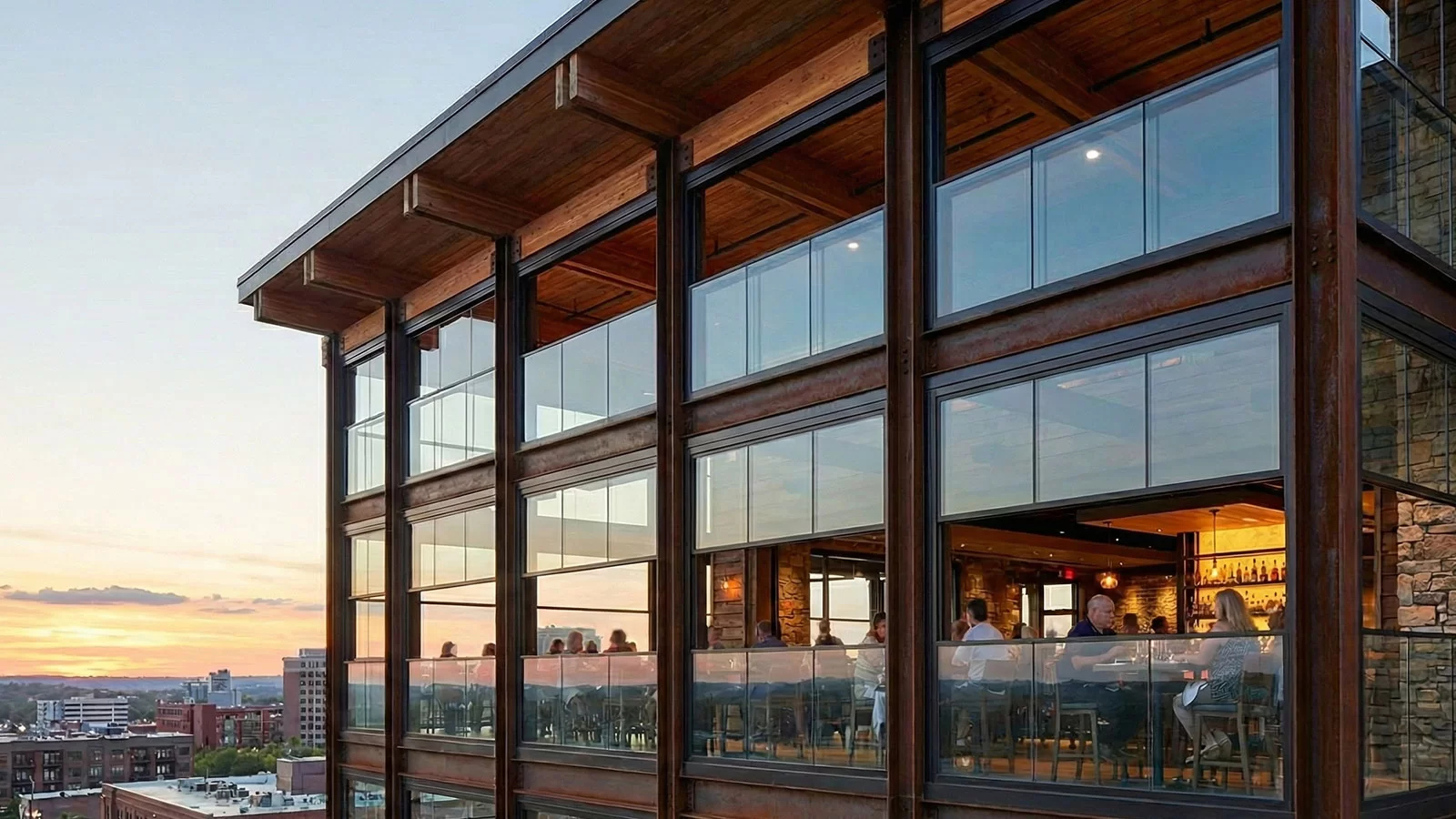

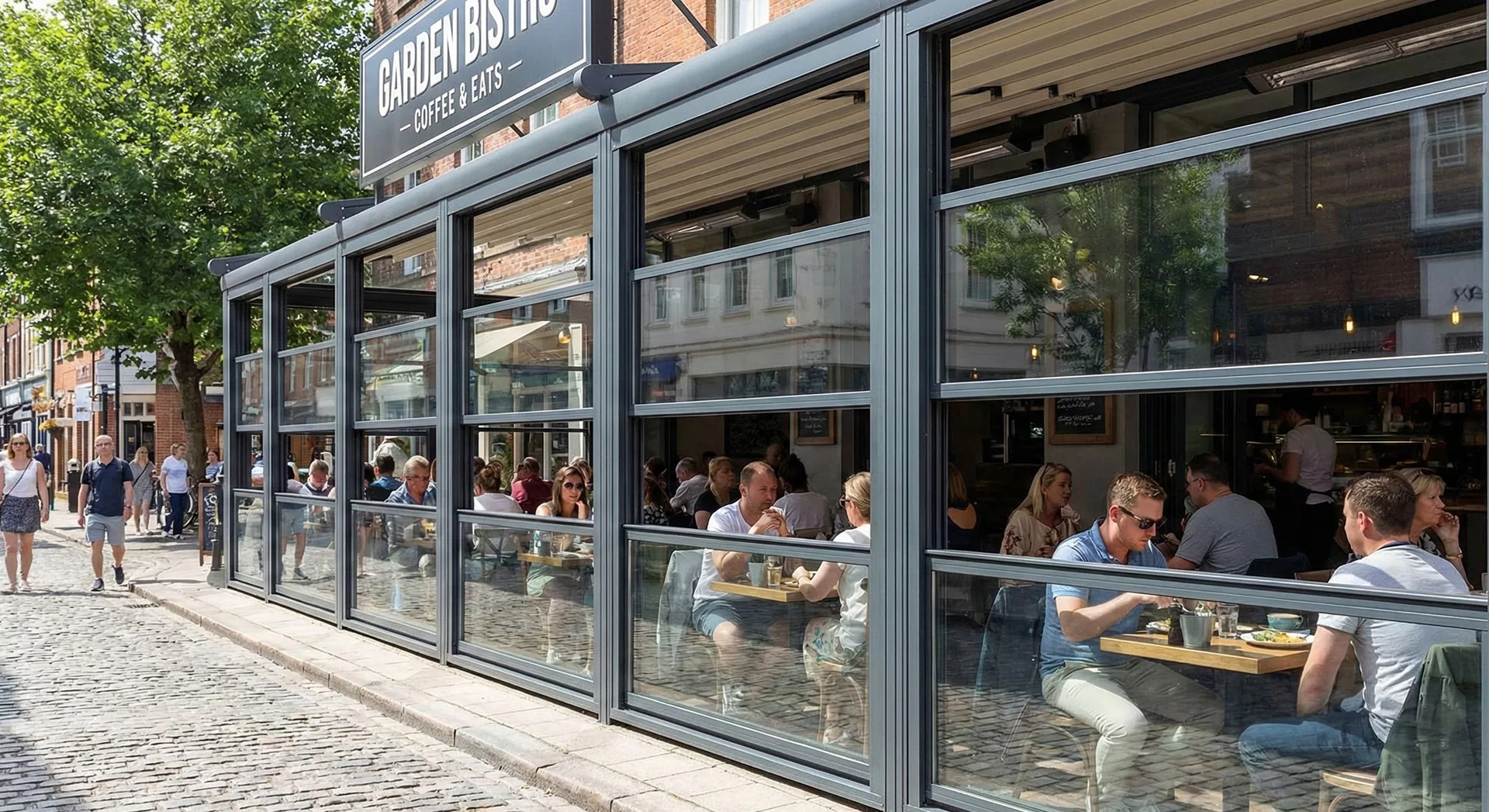

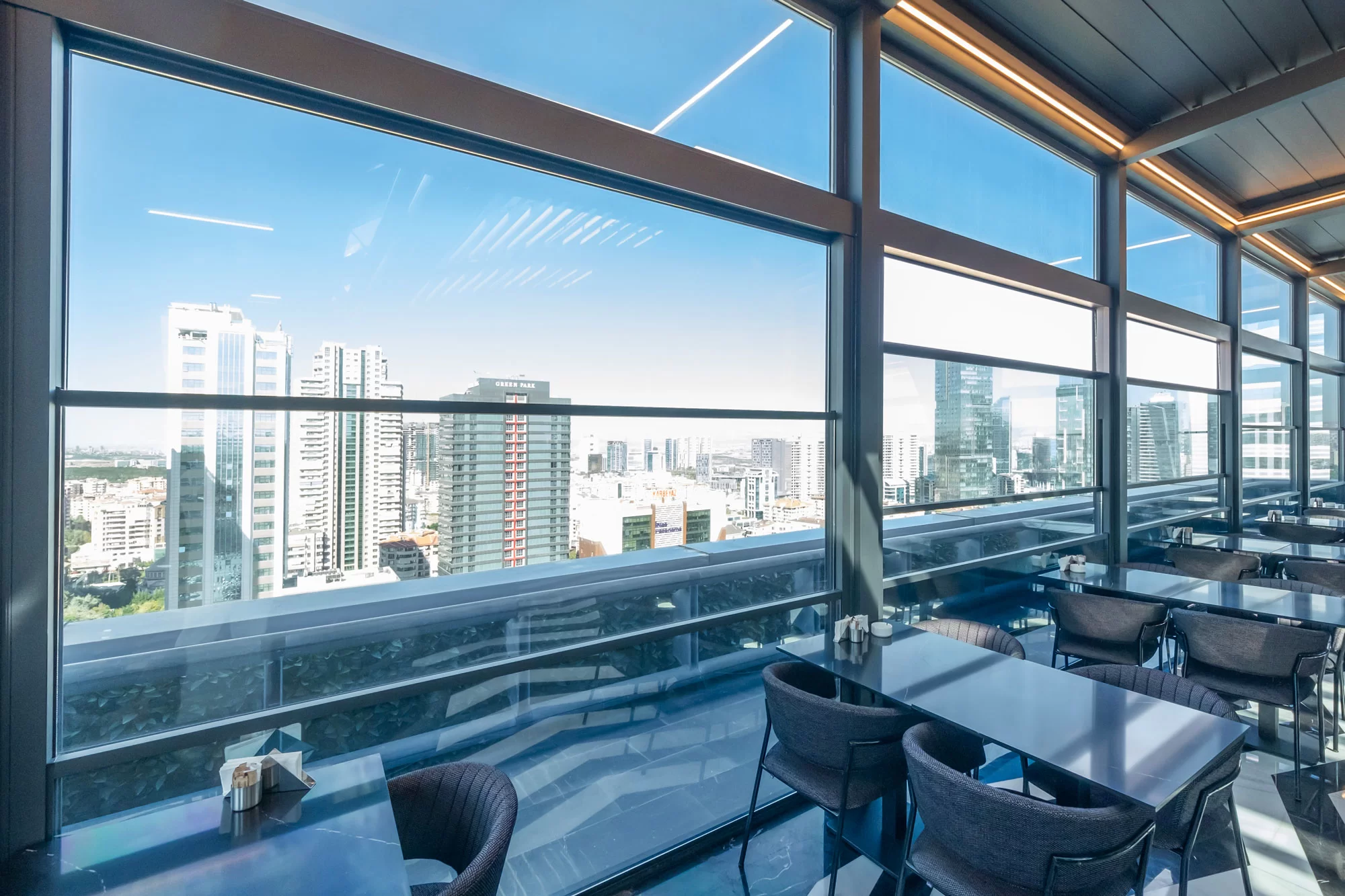

Assisted guillotine glass systems are designed as an alternative solution for high-rise buildings, restaurants, cafés, hotels, and patisseries where comfort, automation, and safety are critical.

• Glass panels move horizontally up and down using a motorized mechanism

• Operation via button or remote control (both options possible)

• Uses 4+16+4 mm tempered insulating glass as standard (other combinations optional)

• Side-mounted 67 × 1200 bristle wicks in the aluminium case provide insulation

• A durable belt with a 20 × 25 mm inner steel rope, or optional chain, lifts the windows quietly

• Each moving sash uses 8 ball bearings inside the side channels for smooth, balanced movement

Up to 20 systems can be controlled with a single remote control, and you can stop the glass at any level. When open, the 3 sashes stack in front of each other and act as a glass balustrade. When closed, they provide sound, heat, and water insulation and lock automatically—no extra lock is needed.

You can open from the top as much as you like, ventilating the area while minimizing wind discomfort for people seated or standing nearby

Cleanable guillotine glass systems are developed for projects where easy maintenance and cleaning are as important as comfort and safety—again ideal for high-rise applications, restaurants, cafés, hotels, and patisseries.

Key features:

• All glass surfaces can be cleaned, because the bottom sash can be opened in the system

• Windows move vertically up and down using a motorized system, started by button or remote

• Uses 4+16+4 mm tempered insulating glass as standard (other combinations optional)

• Side-mounted 67 × 1200 bristle wicks provide insulation and controlled movement

• Durable belt with 20 × 25 mm inner rope, or optional chain, ensures quiet and easy operation

• 8 ball bearings per sash allow smooth, balanced movement in the side channels



As with the assisted system, up to 20 systems can be controlled from a single remote, and you can stop at any level. When open, three sashes act as a glass guardrail; when closed, the system delivers sound, heat, and water insulation and stays securely shut without an additional lock.

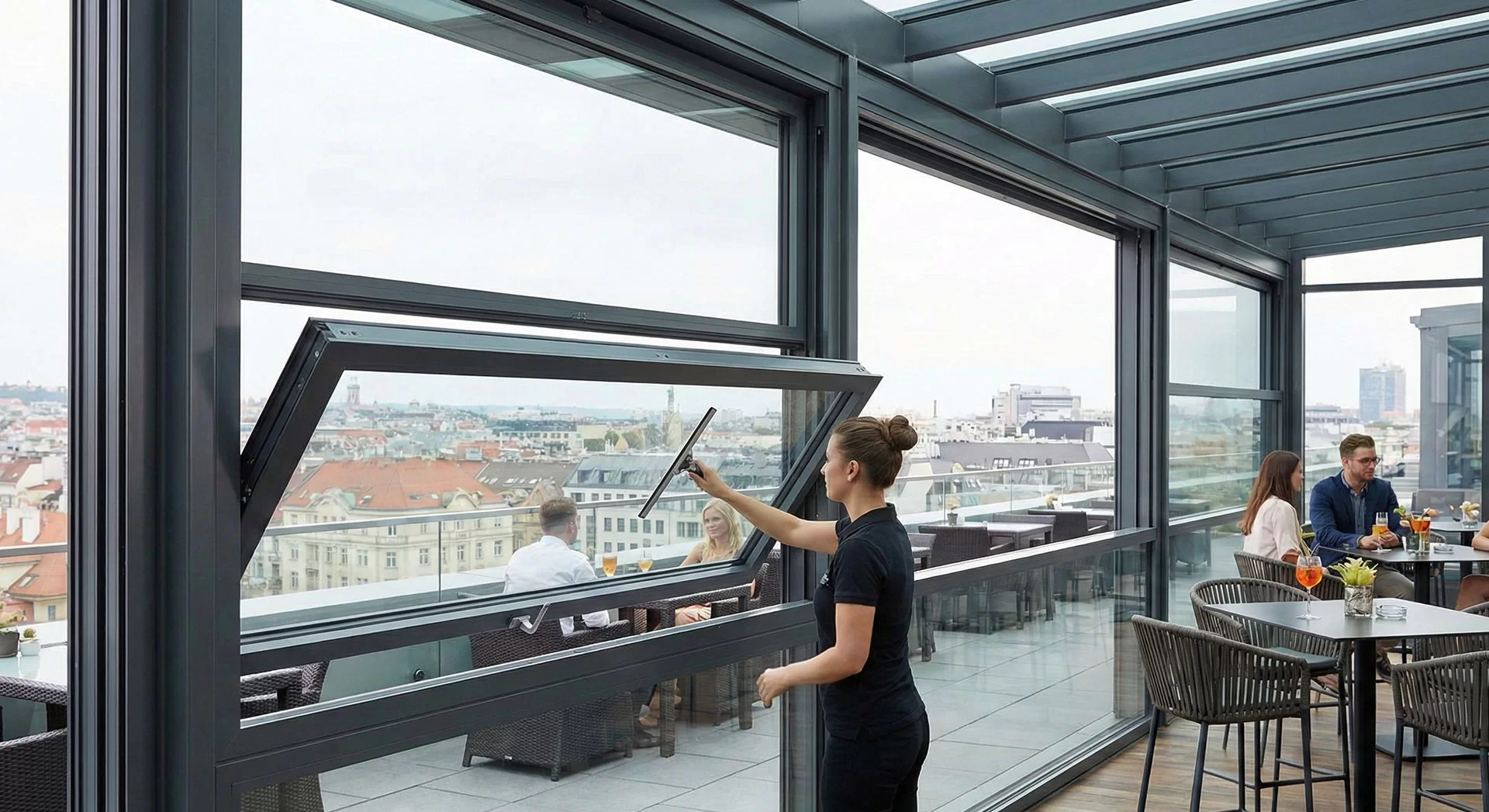

The cleanable version adds one key advantage: the design of the lower panel and side rails allows easy access to the outer surfaces of the glass, making routine cleaning much simpler and safer.
