What Is a Fixed Glass Roof System?
Fixed glass roofs are architectural roof systems with glass panels permanently mounted on aluminum carriers. Instead of a solid ceiling, they create a bright, transparent surface that connects the interior to the sky and surrounding environment.
They are a popular choice for bringing in more natural daylight, creating a greater sense of height, and making spaces feel more open. They also strengthen the visual connection between indoor and outdoor areas.
Fixed glass roofs can be adapted to many architectural styles, from modern homes to commercial spaces with strong design character. They are a sleek solution when daylight, transparency, and a refined look matter most.
Why Choose a Fixed Glass Roof System?
A fixed glass roof is the ideal solution when you want maximum natural light combined with a permanent, architecturally refined ceiling. It shelters patios, terraces, and pergola structures from rain and the elements while preserving an open view of the sky, seamlessly extending a home or commercial space without sacrificing comfort or clarity.
Performance is built into every detail: proper slope and drainage, fully sealed interfaces, and glazing specifications selected for safety and thermal comfort. The right glass can reduce heat gain, improve year-round usability, and deliver a structure that looks deliberate, feels solid, and holds up reliably over time.
Natural Light & Openness
Modern Architectural Look
4-Season Comfort with the Right Glass
Energy Efficiency Potential
Durability & Low Maintenance
Shading Integration
Aesthetic and Practical Advantages
Beyond their visual impact, fixed glass roofs offer clear practical benefits. Fixed glass roof systems can also be integrated with ceiling curtain systems to protect against unwanted sunlight and glare when necessary, combining permanent structure with controllable shading.

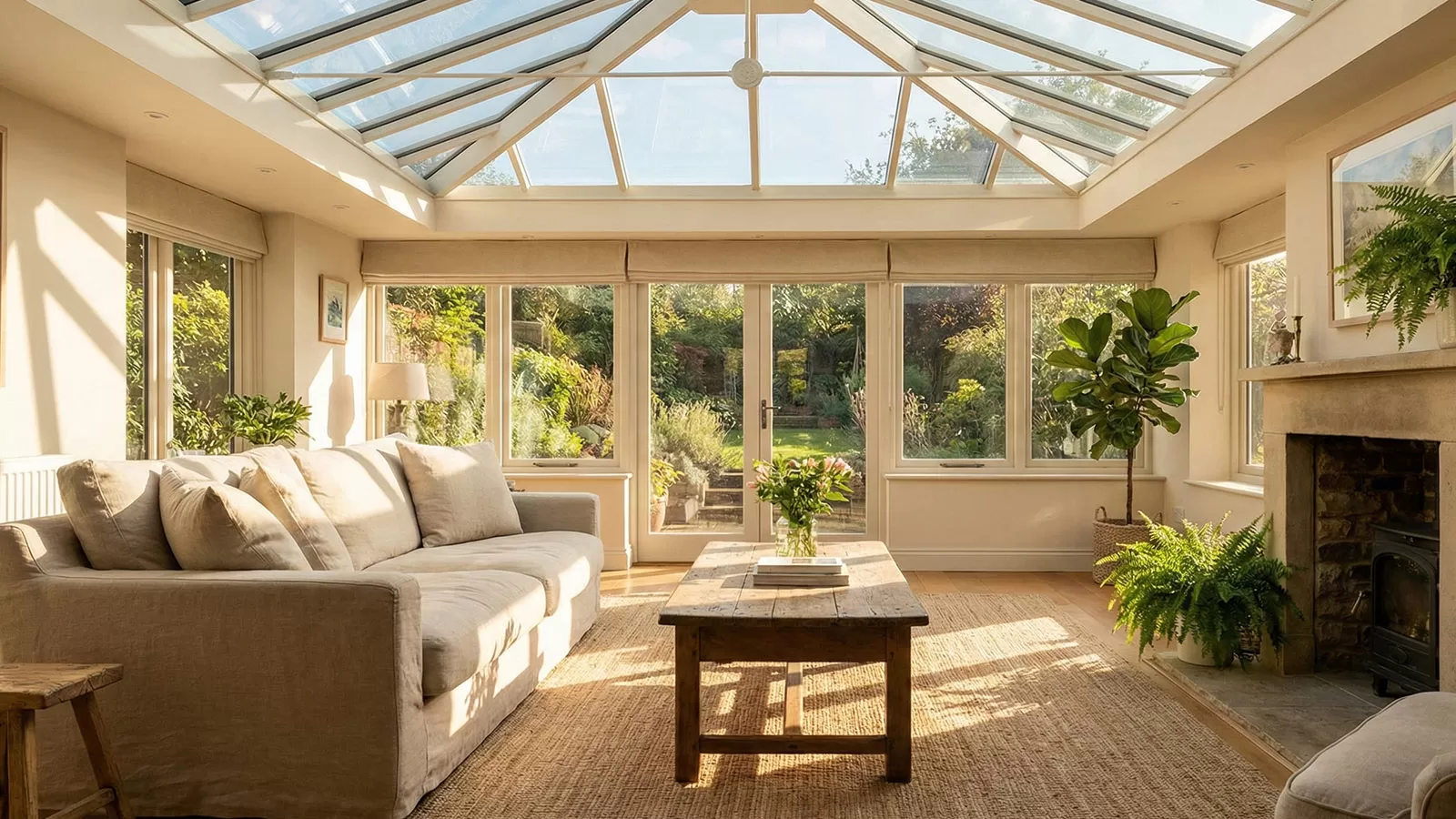

Structural Integration
- Standalone glass roof structures for winter gardens and terraces
- Integrated into pergola frames to create a fully glazed roof over aluminum structure
- Paired with vertical glass systems (sliding, folding, or guillotine) to build complete glass rooms

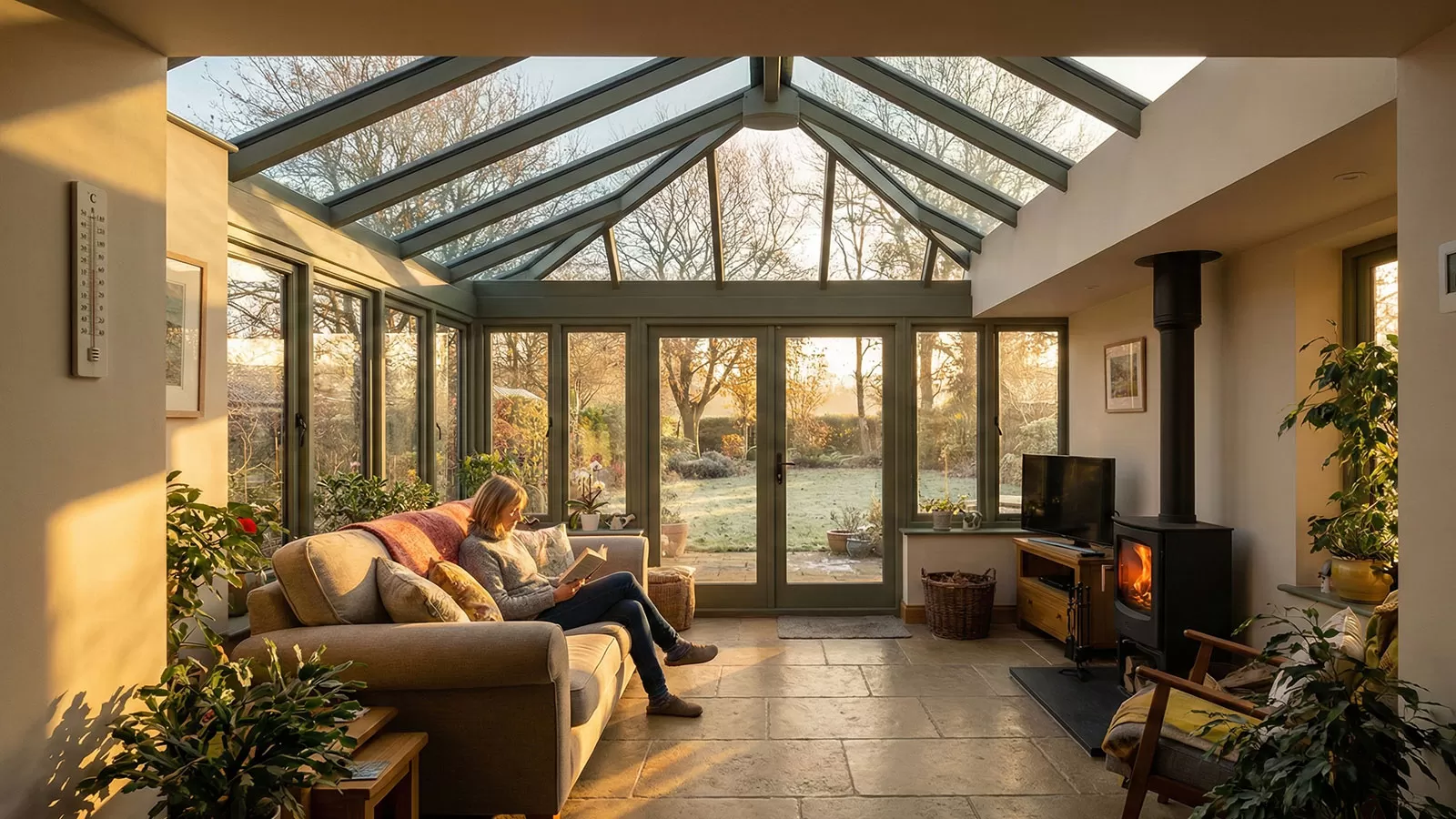

Design Solutions
- Different project geometries: simple rectangular roofs or more complex multi-bay solutions
- Integration of LED lighting within profiles for night-time ambience

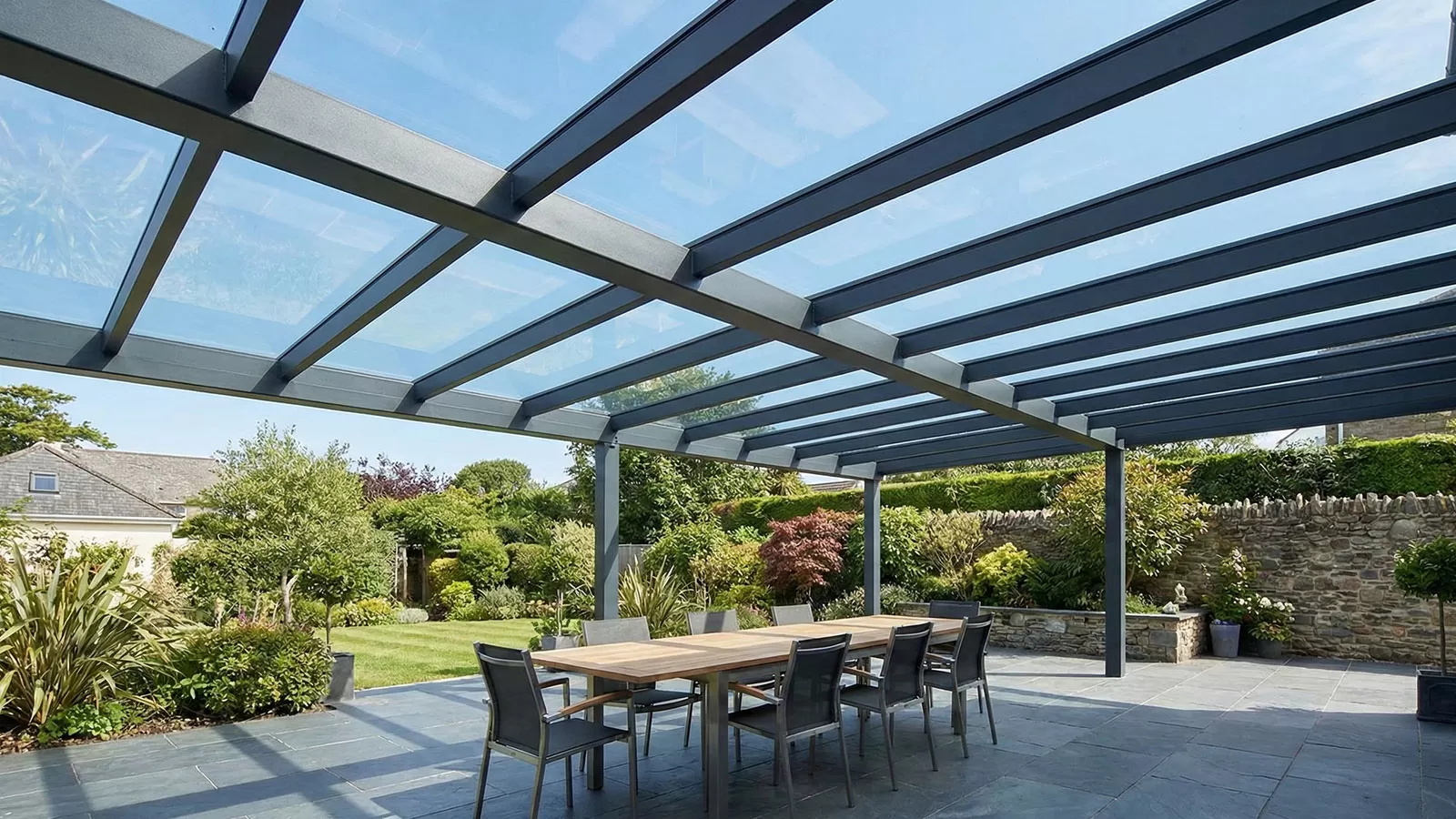

Glass Types
Selecting tempered insulated glass or tempered laminated insulated glass improves resistance to heat and cold, helping maintain a more comfortable space year-round.
Where Fixed Glass Roofs Make the Biggest Difference
Fixed glass roofs are versatile and can be used in many residential and commercial projects, including.
Wherever natural light and a feeling of openness matter, fixed glass roofs are an excellent solution.

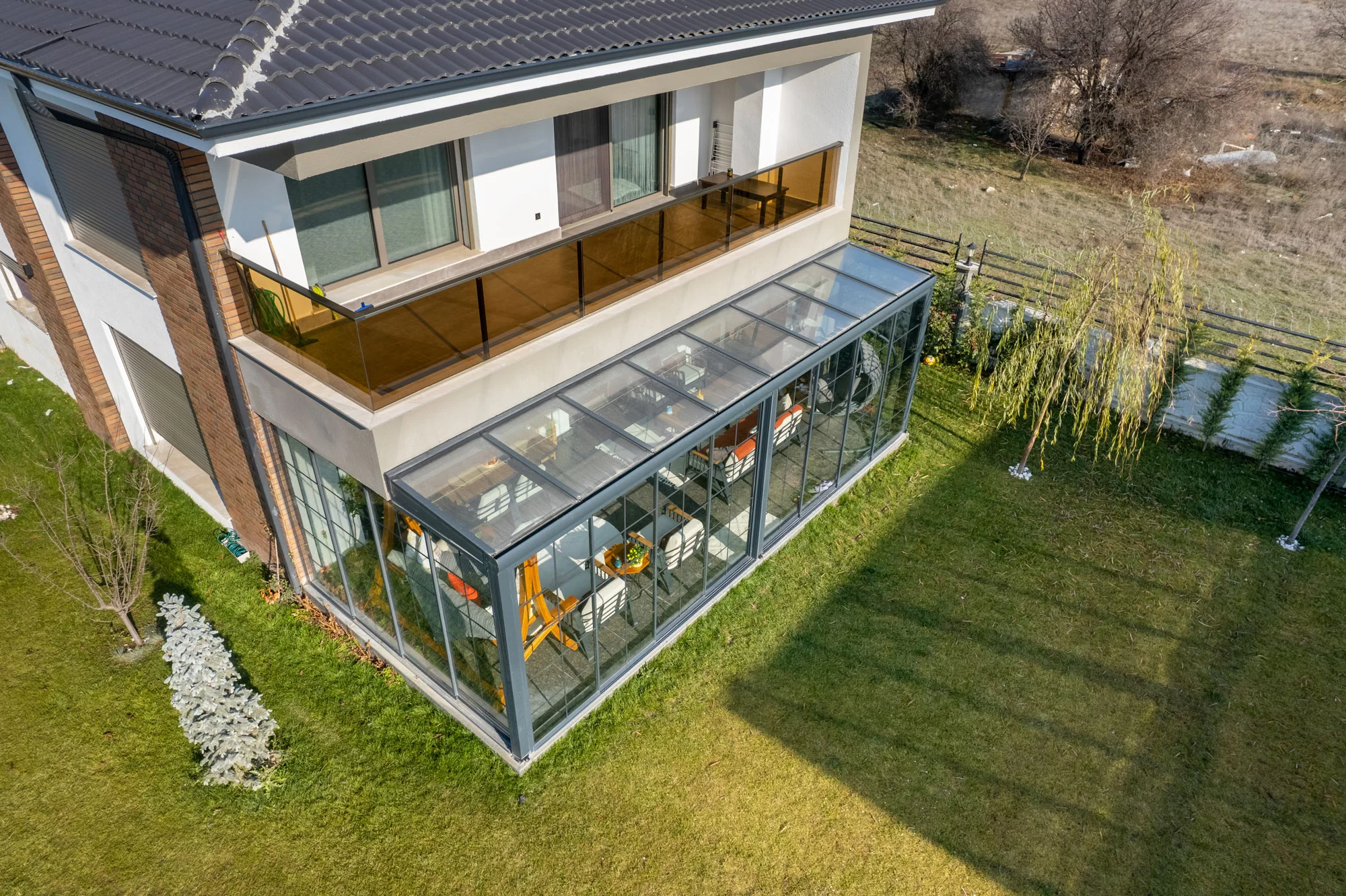

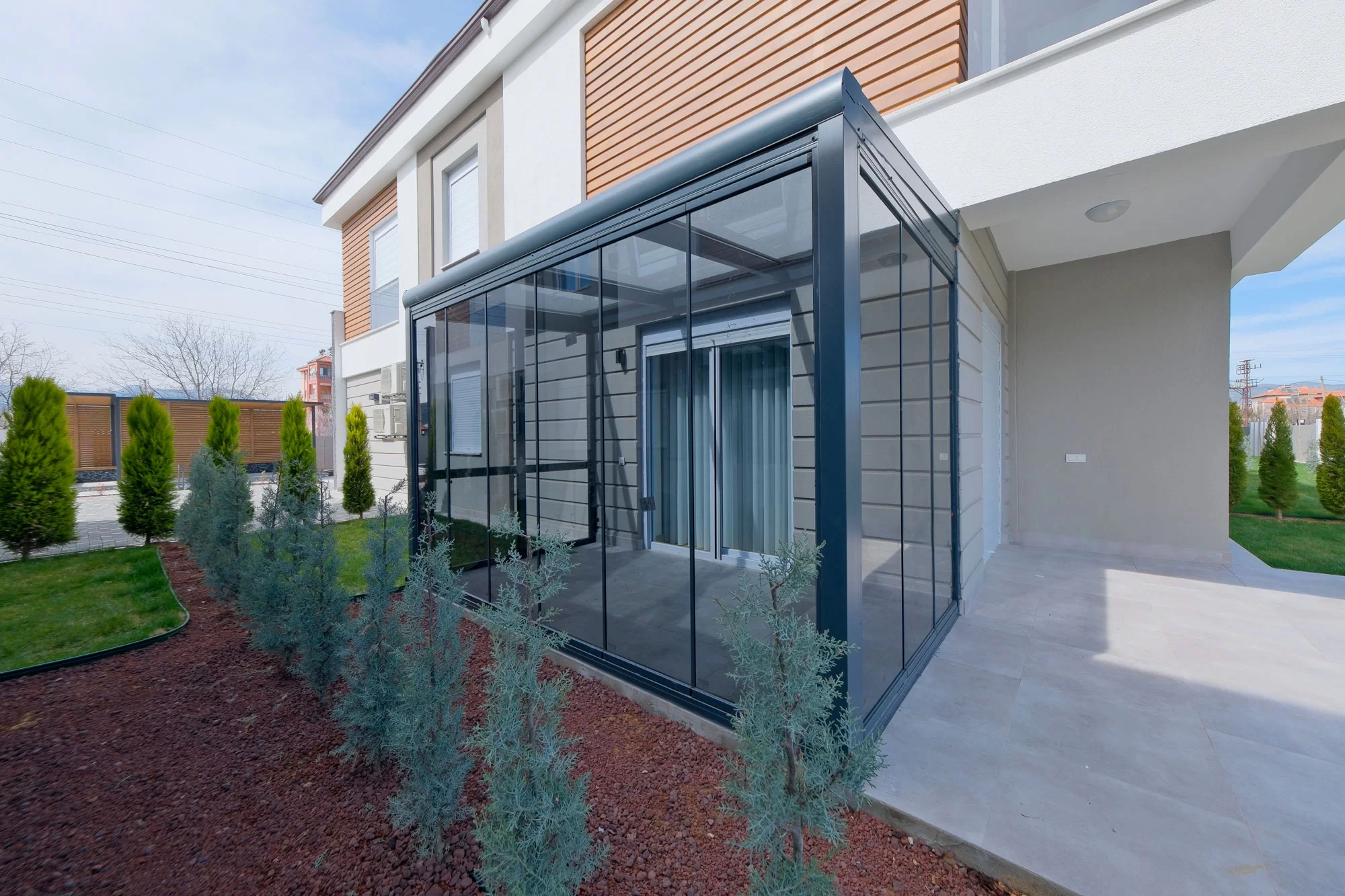

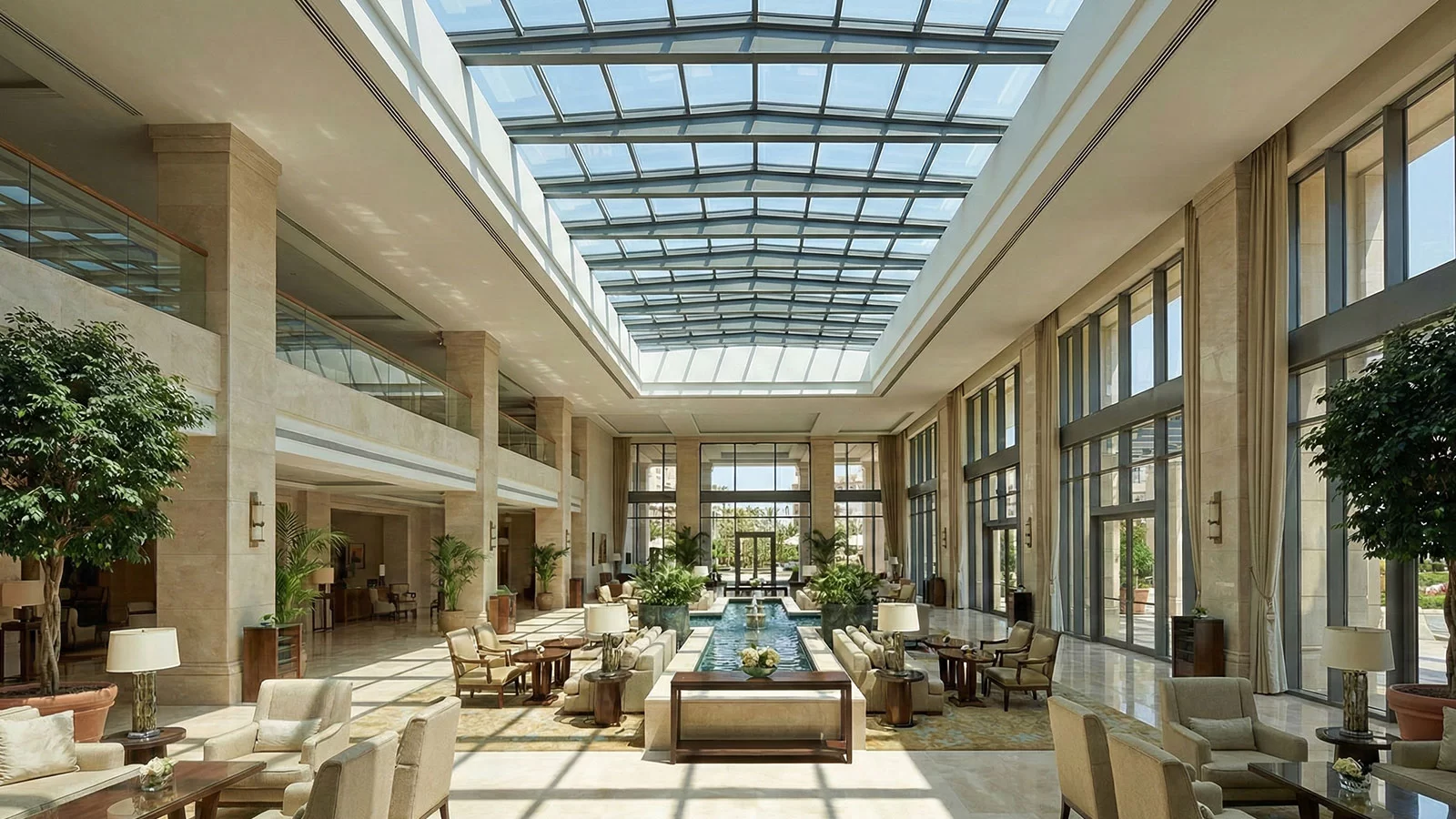

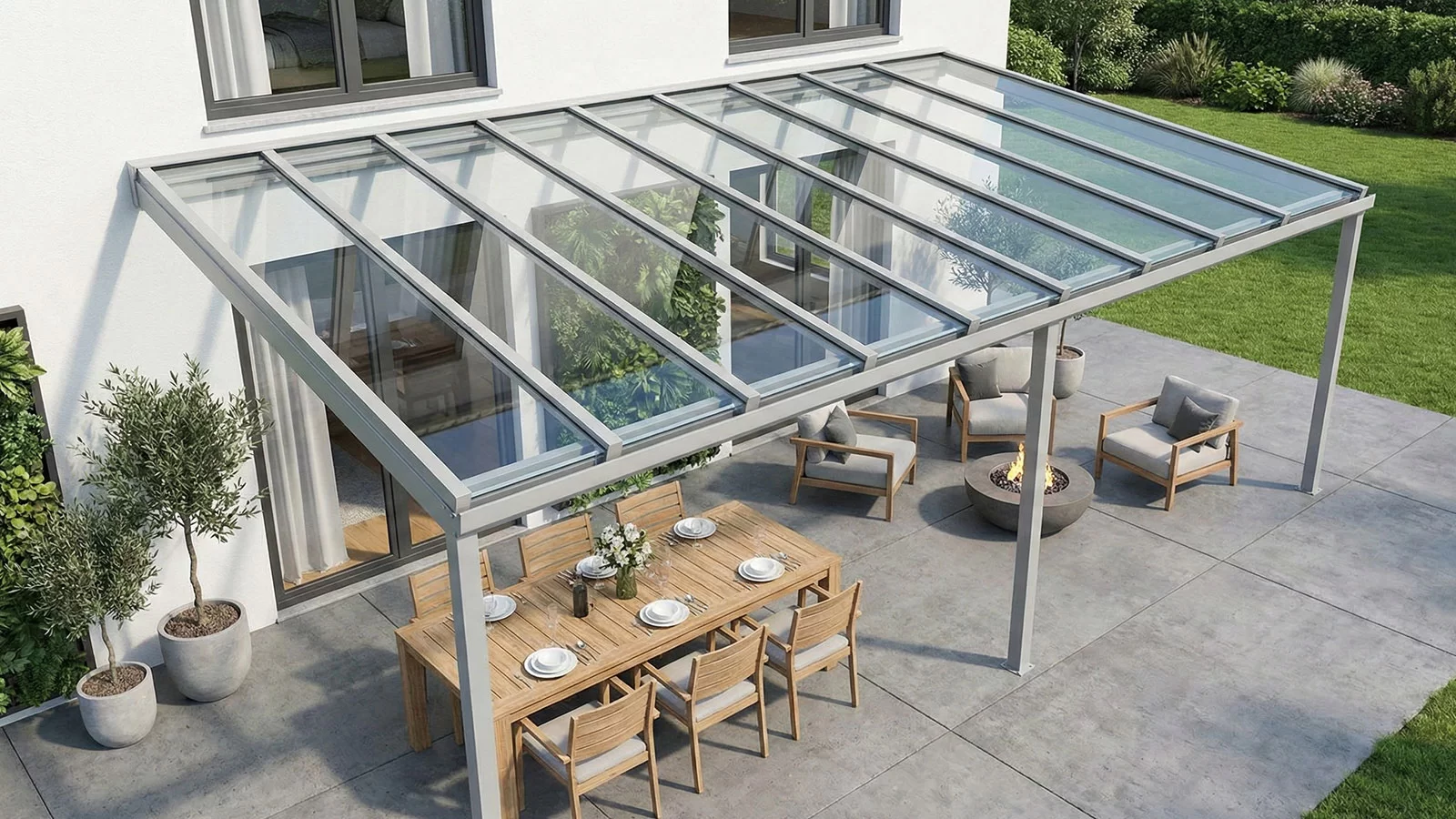

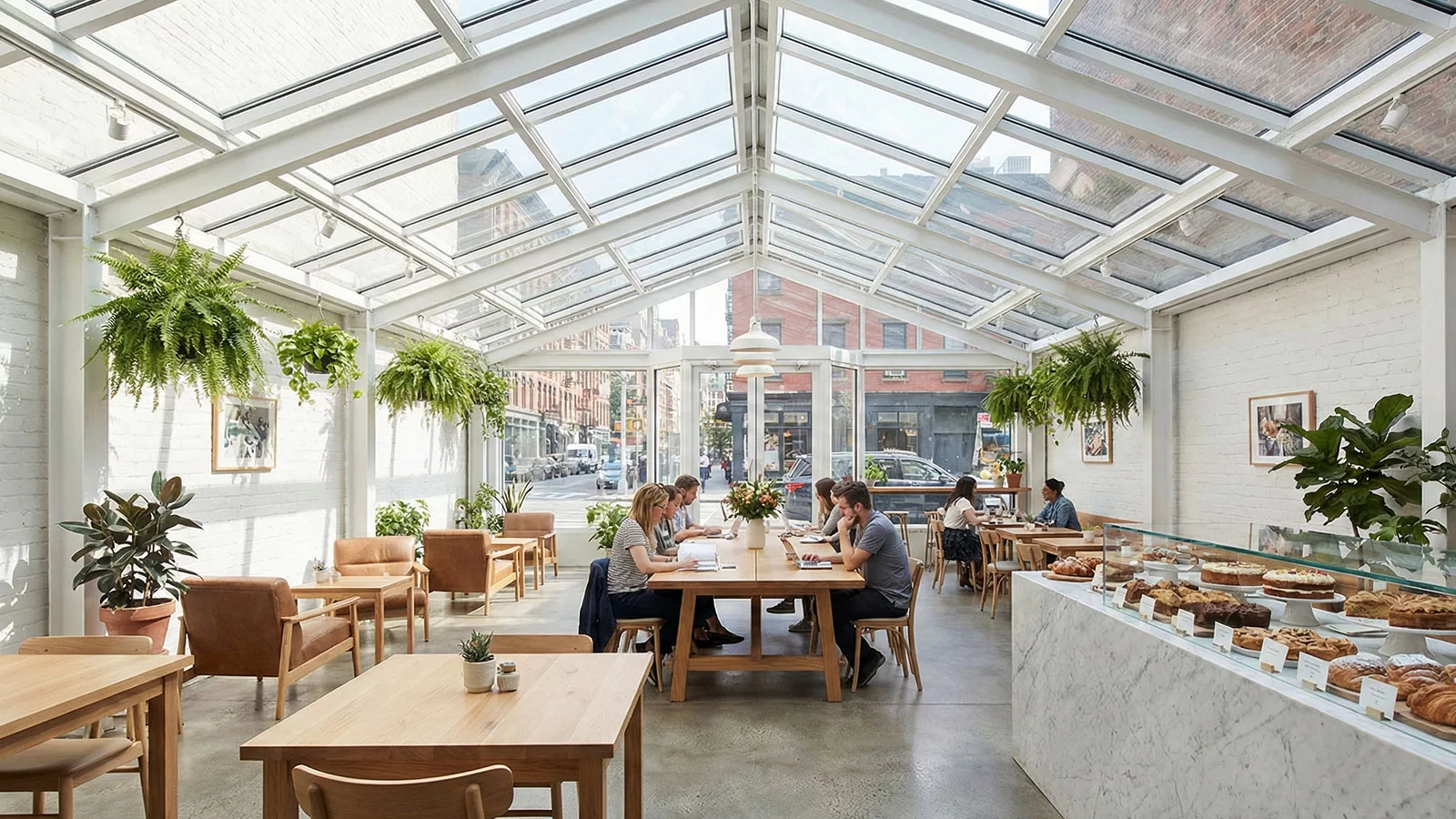

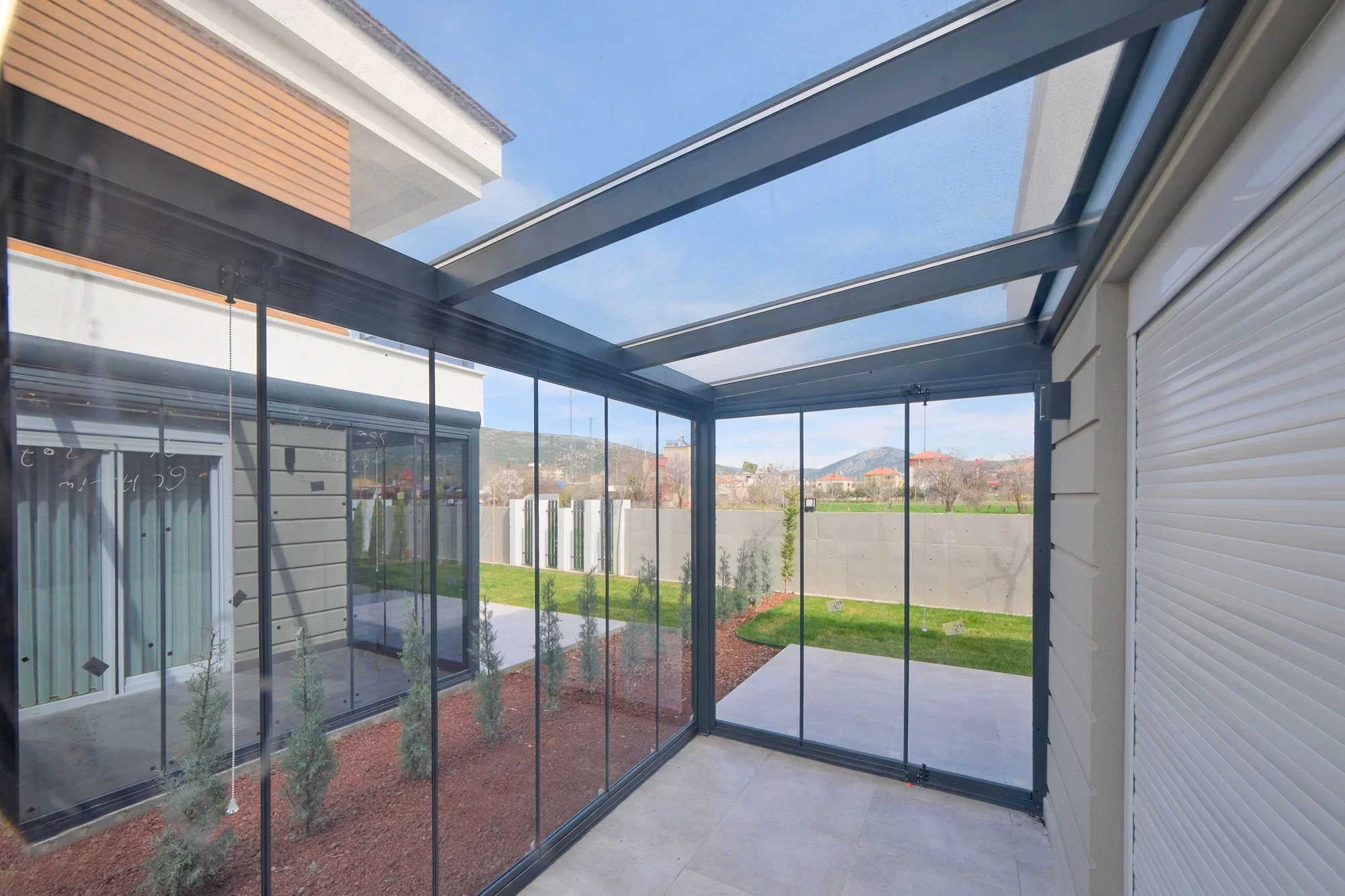

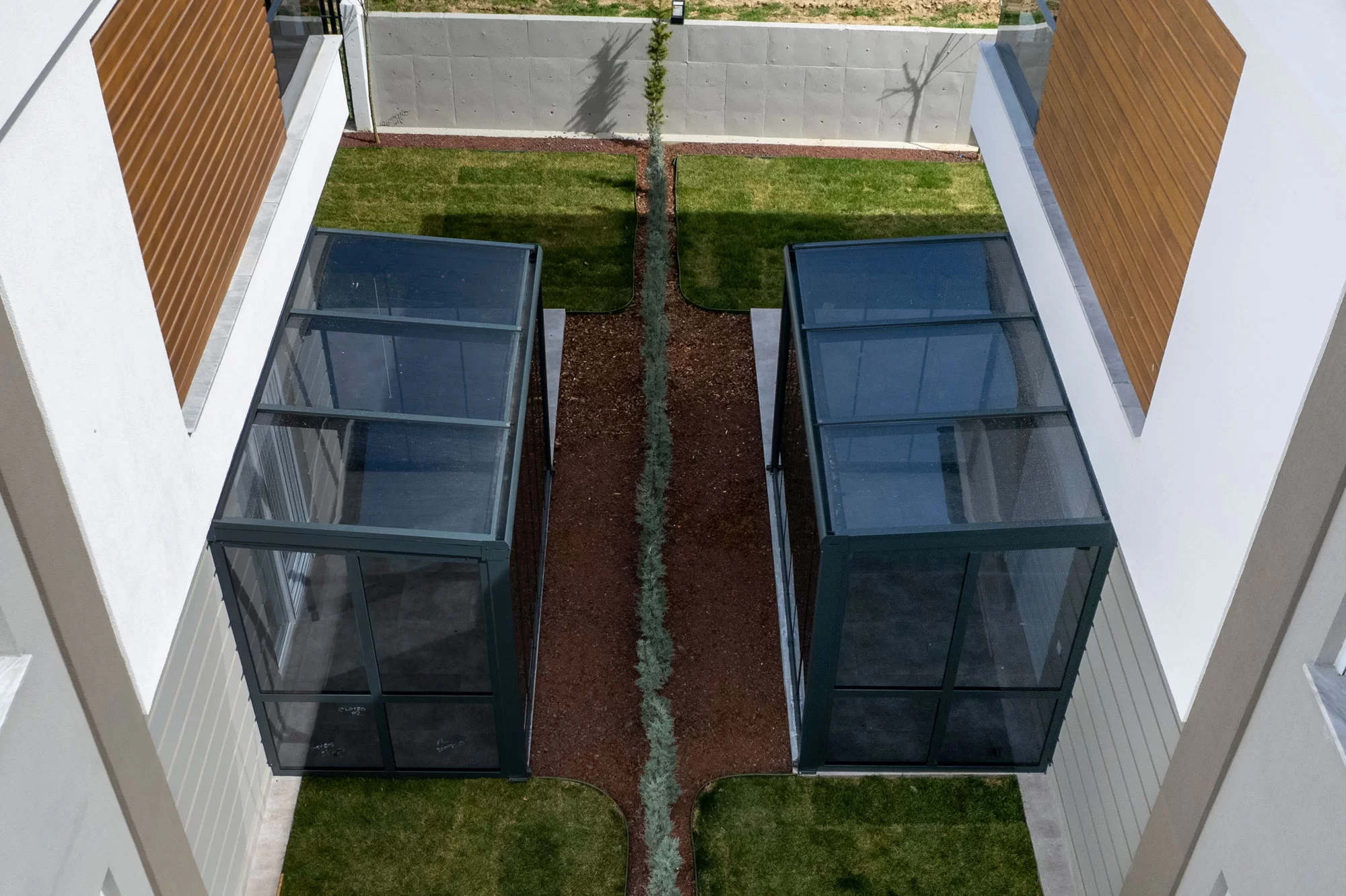

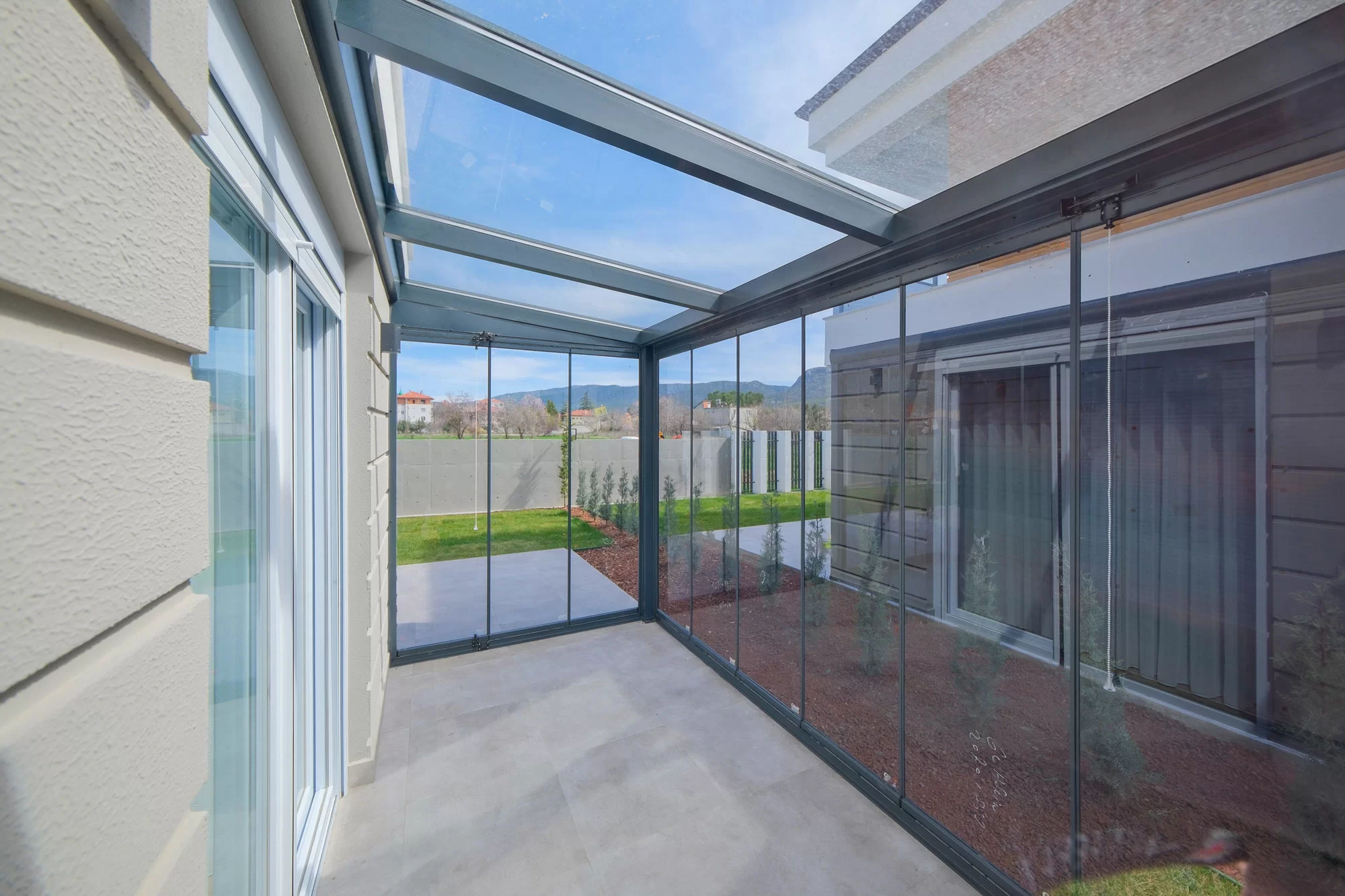

Fixed Glass Roofs in Real Projects
View real installations to see how fixed glass roofs look in finished spaces, different layouts, finishes, and enclosure options built with precise fit and clean detailing.
Fixed Glass Roof Technical Specifications
Fixed glass roof system is designed for structural performance, insulation, and clean detailing.
Glass Options
Glass Panel Dimensions
Carrier Aluminium Rails Profile Dimensions
Span & Support
Lighting
Key Structural Profiles
Front gutter
Rear wall connection
Finish & Warranty
Tempered insulated glass or tempered laminated insulated glass for improved thermal comfort and more stable interior temperatures.
Up to 13'1.5" × 3'3.4" (4,000 × 1,000 mm) per piece.
~2.36" × 4.72" × 0.06" (60 × 120 × 1.6 mm); installed at ~39.4" (3'3") intervals for consistent support.
If a side facade exceeds ~13'1.5", the system can be reinforced with steel profiles up to ~26'3" (8,000 mm).
Optional integrated LED lighting for nighttime use and architectural effect.
Front foot: ~3.54" × 5.12" × 0.10" (90 × 130 × 2.5 mm)
~7.48" × 5.79" × 0.08" (190 × 147 × 2 mm, self-tilt for drainage)
~2.72" × 7.52" × 0.08" (69 × 191 × 2 mm, self-tilt for runoff/alignment)
Electrostatic powder coating on all aluminum components; 2-year warranty on structure and finish.
Fixed Glass Roof Systems FAQ
They can be used over winter gardens, terraces, balconies, pergolas, lobbies, atriums, hotel lounges, shopping mall courts, and many other residential and commercial spaces.
With the right glass selection (insulating, solar-control, laminated options) and optional ceiling curtain systems, solar gain and glare can be managed effectively. Proper design balances light, comfort, and energy performance.
Yes. When specified with insulating glass and integrated with the right side systems (sliding, folding, or guillotine glass), fixed glass roofs can be an important part of a 4-season living or commercial area.
The system uses carrier profiles and front/rear profiles with self-tilt features, so water is directed to gutters and downpipes as part of the overall drainage design.
Periodic cleaning of glass surfaces and profiles, plus inspection of seals and drainage channels to keep them free of debris. Aluminium and glass require relatively low day-to-day maintenance compared to many traditional roof materials.
