What Is a Retractable Glass Roof System?
Retractable glass roofs are automatic overhead systems designed to open and close the roof area with sliding glass panels. Operated by remote control, a wall button, or even a mobile phone, they transform a fixed ceiling into a movable glass canopy that adds flexibility to both residential and commercial spaces.
When the roof is open, the space feels fully connected to the outdoors, creating clear views of the sky during the day and the stars at night. When closed, the system becomes a fully glazed and insulated roof that helps protect the space from rain, wind, cold, and heat while still allowing natural light to enter.
With insulating glass, retractable glass roofs help improve energy efficiency and support thermal comfort in both warm and cold seasons. They are an ideal solution for anyone who wants the openness of an outdoor terrace with the protection and comfort of a more enclosed space.
Why Choose a Retractable Glass Roof?
Open Sky When You Want It
4-Season Comfort & Insulation
Energy Saving & Daylight
Weather Protection & Waterproofing
Silent, Smooth Operation
Smart Automation
How the Retractable Glass Roof Works

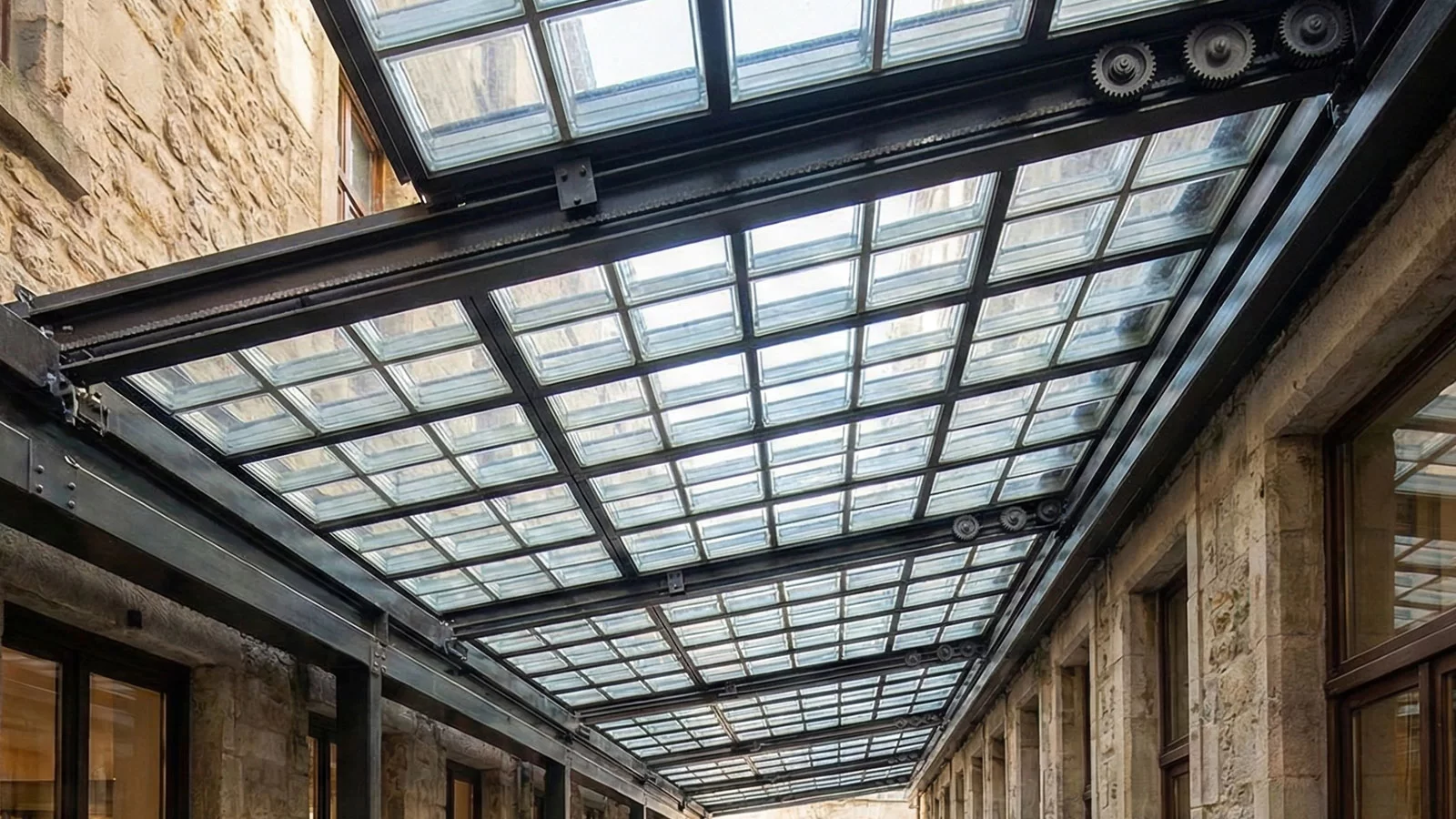

Roof panels slide and stack in 2 to 5 sections depending on project size, guided by side rails and synchronized with a T-10 timing belt for balanced movement. The system is self-locking when closed, with optional hidden dimmable LED lighting integrated into the profiles.
-
Roof panels are divided into 2, 3, 4, or 5 partitions in the opening direction, depending on project size and design.
-
Panels slide and stack in a sequence, creating a large opening area while maintaining structural balance.
-
Side rails guide the movement and carry loads, eliminating the need for additional steel construction up to a certain span.
Open-Air Luxury with Glass Roof Functionality
Structural Integration

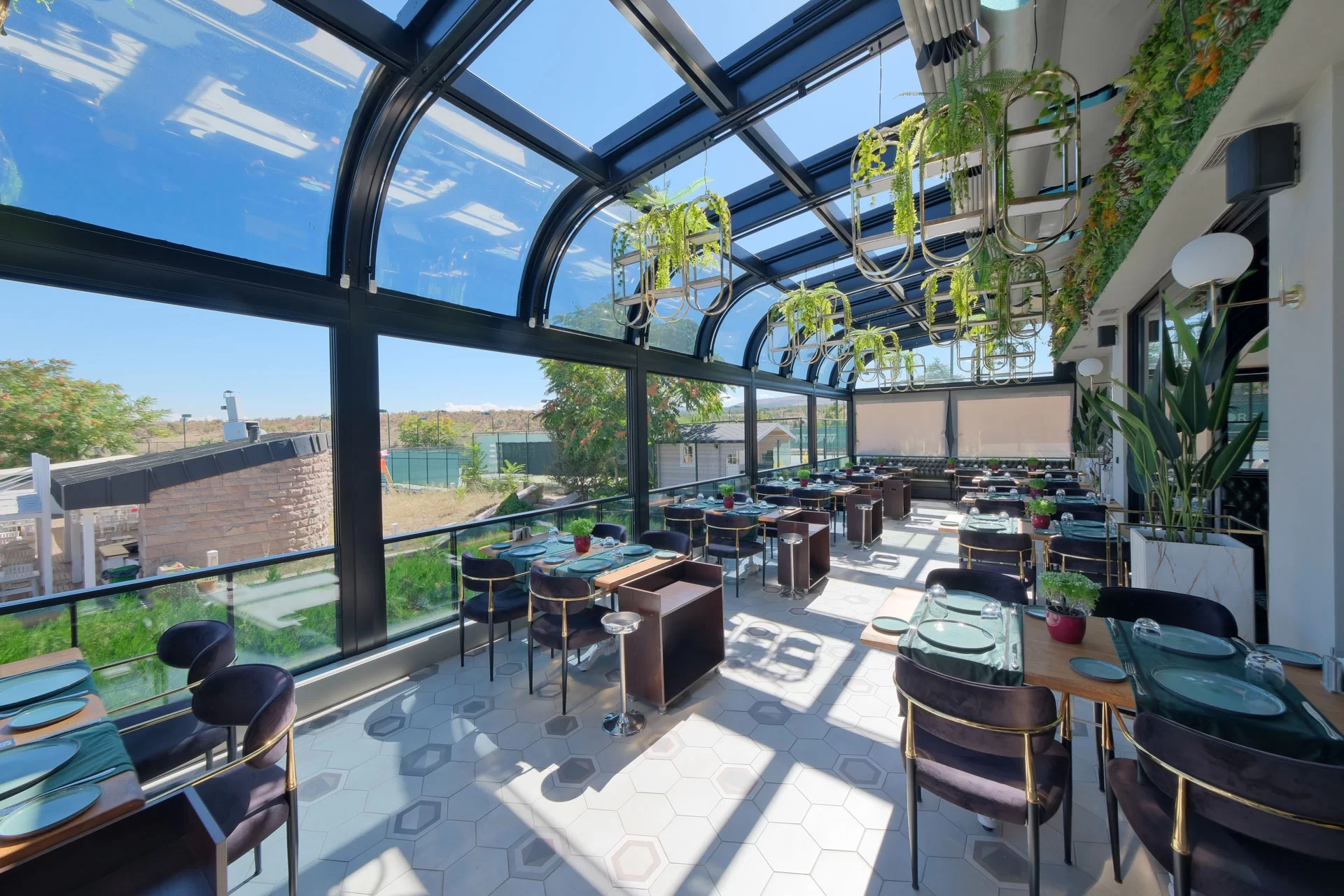

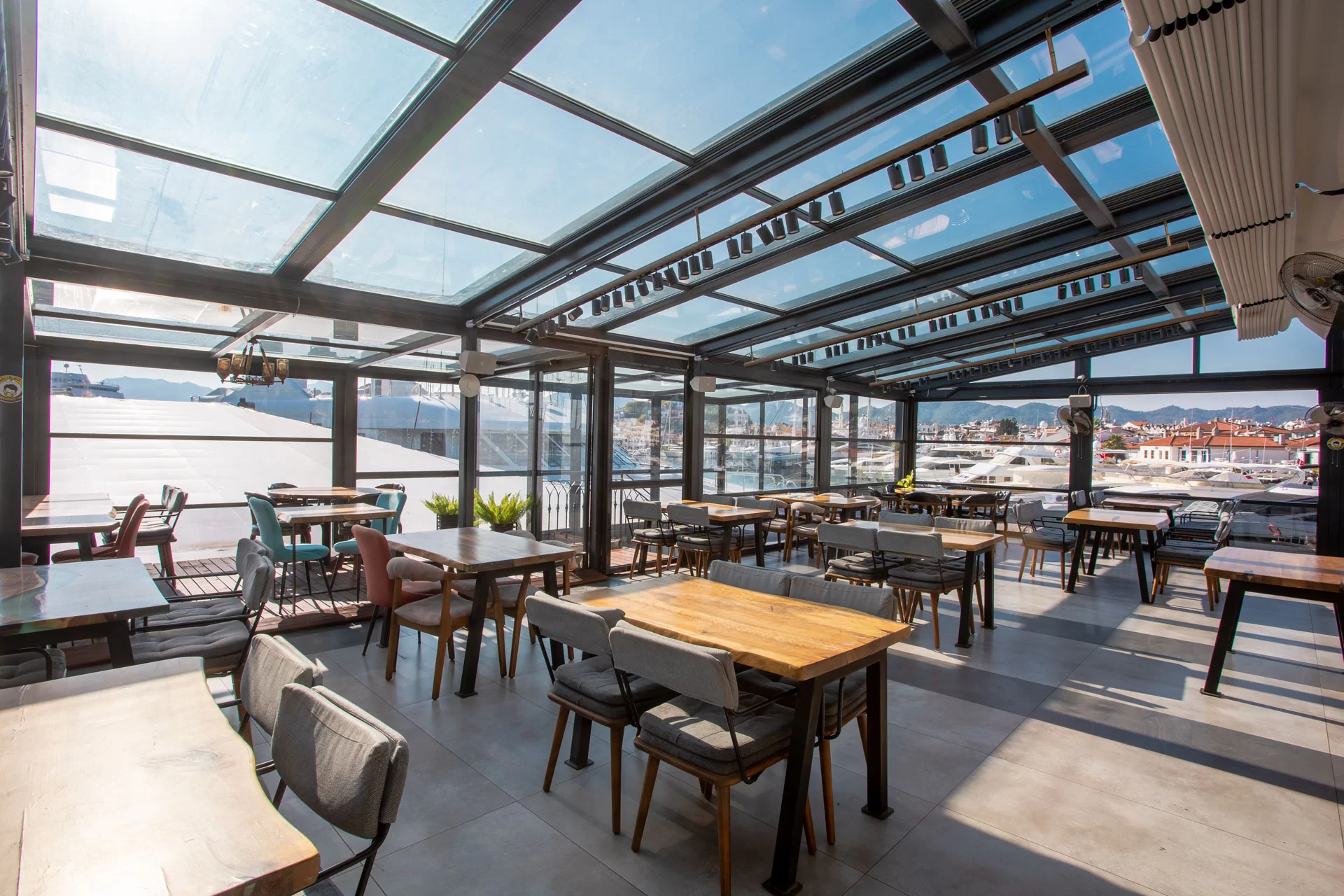

- Retractable glass roof systems for terraces, winter gardens, restaurants, and enclosed outdoor areas
- Integrated into aluminum pergola frames with sliding glass roof panels
- Can be combined with sliding, folding, or guillotine glass walls to create flexible glass rooms

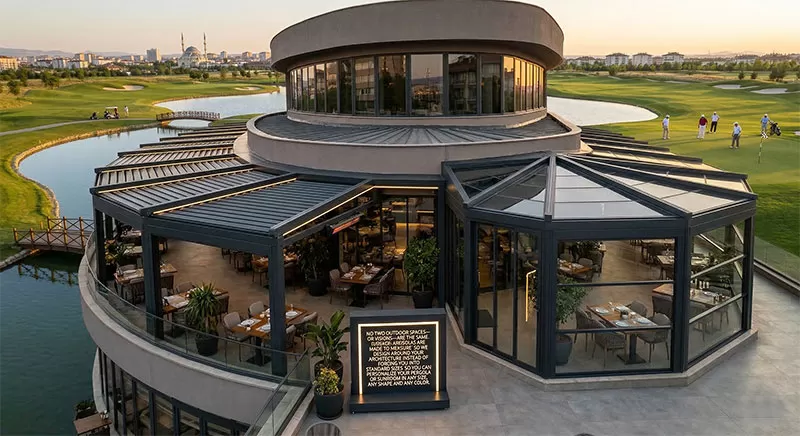

Design Solutions
- Sliding glass panels that open and stack to create partial or wide roof openings
- Suitable for rectangular layouts, multi-bay systems, and larger custom roof configurations

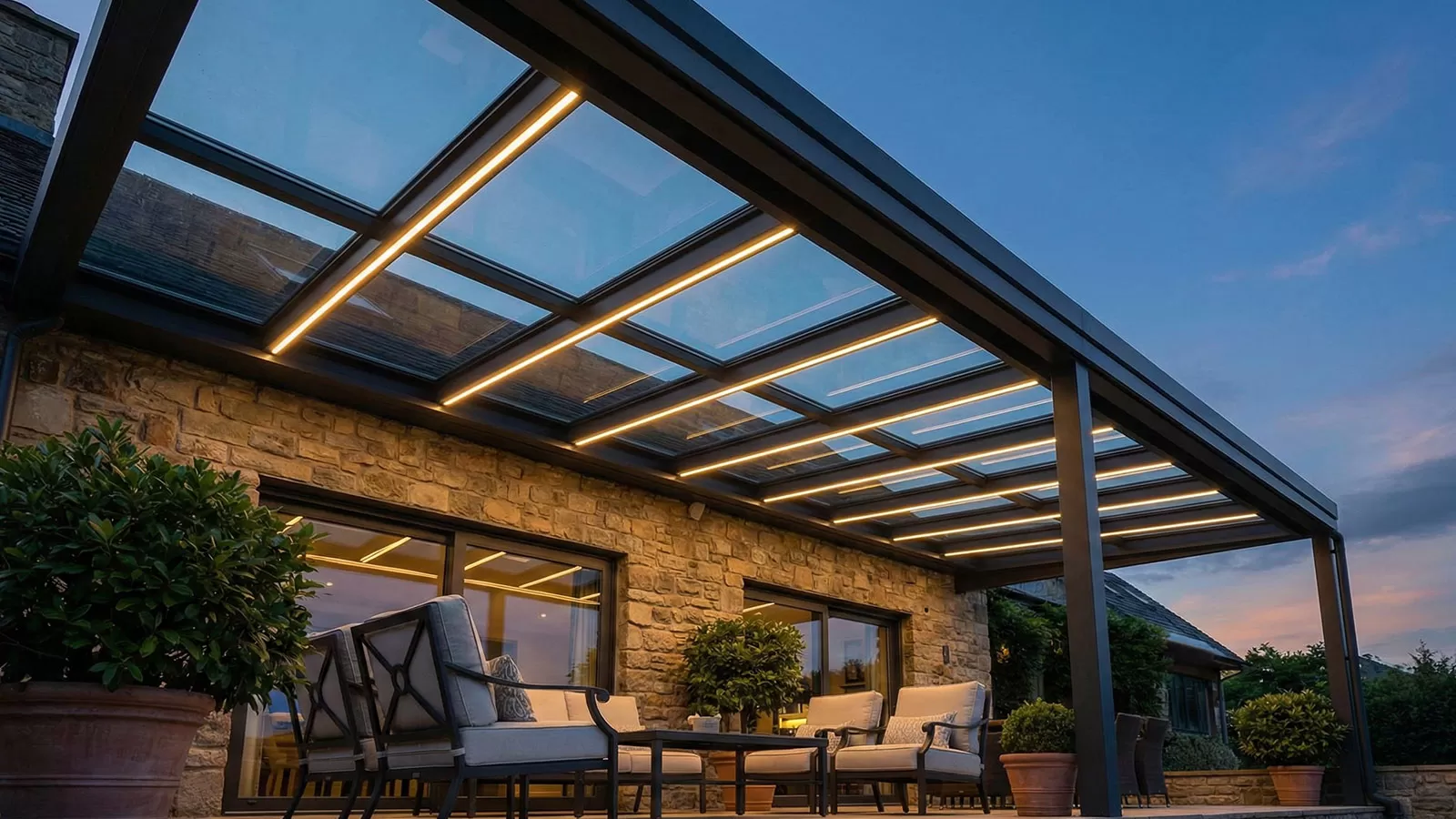

Glass Types
- Tempered insulated glass or tempered laminated insulated glass options for improved durability, safety, and thermal performance
- Reflective glass options can help reduce UV exposure and heat gain while maintaining natural daylight in the space.
From Private Terraces to Busy Commercial Spaces

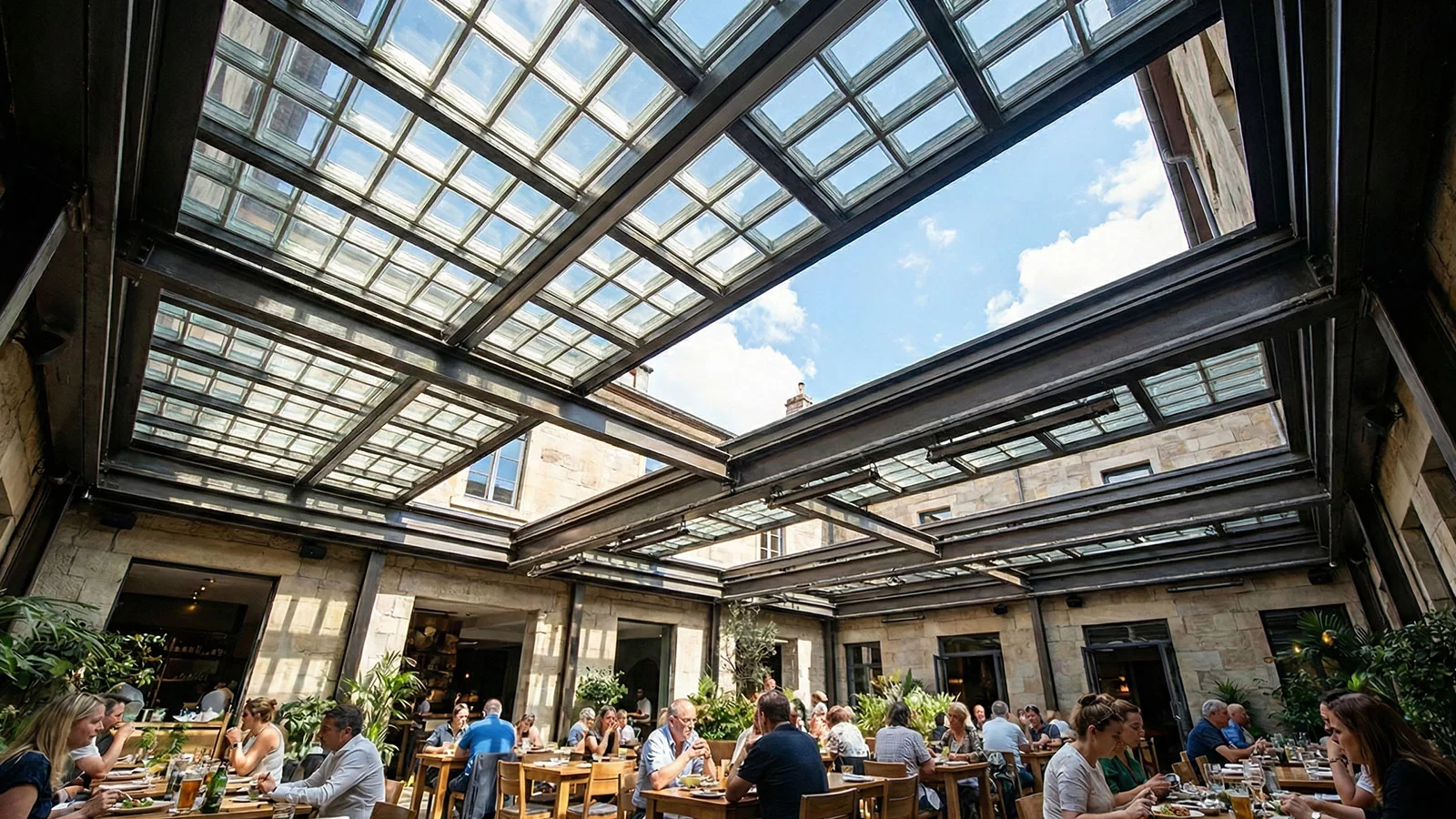

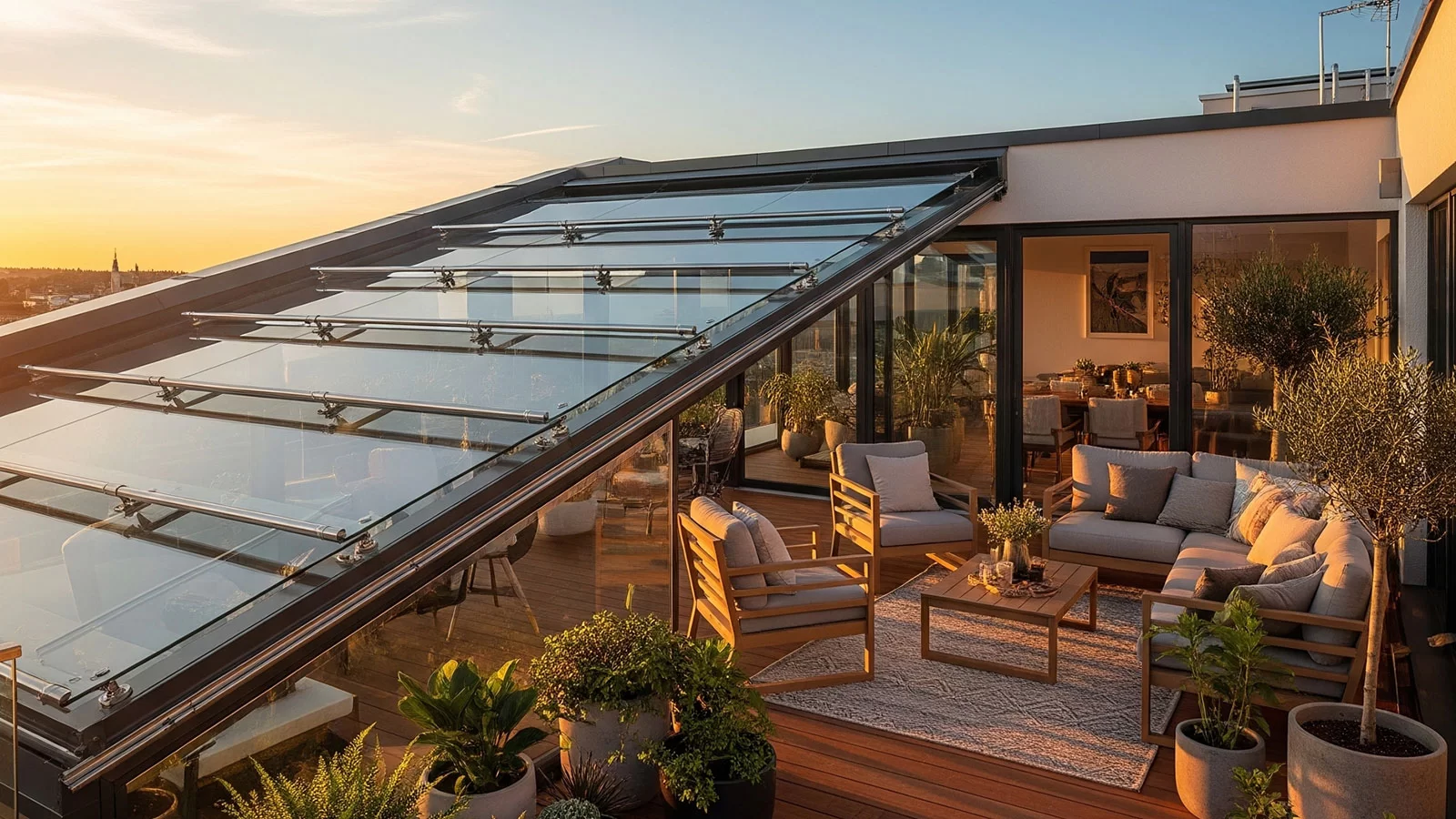

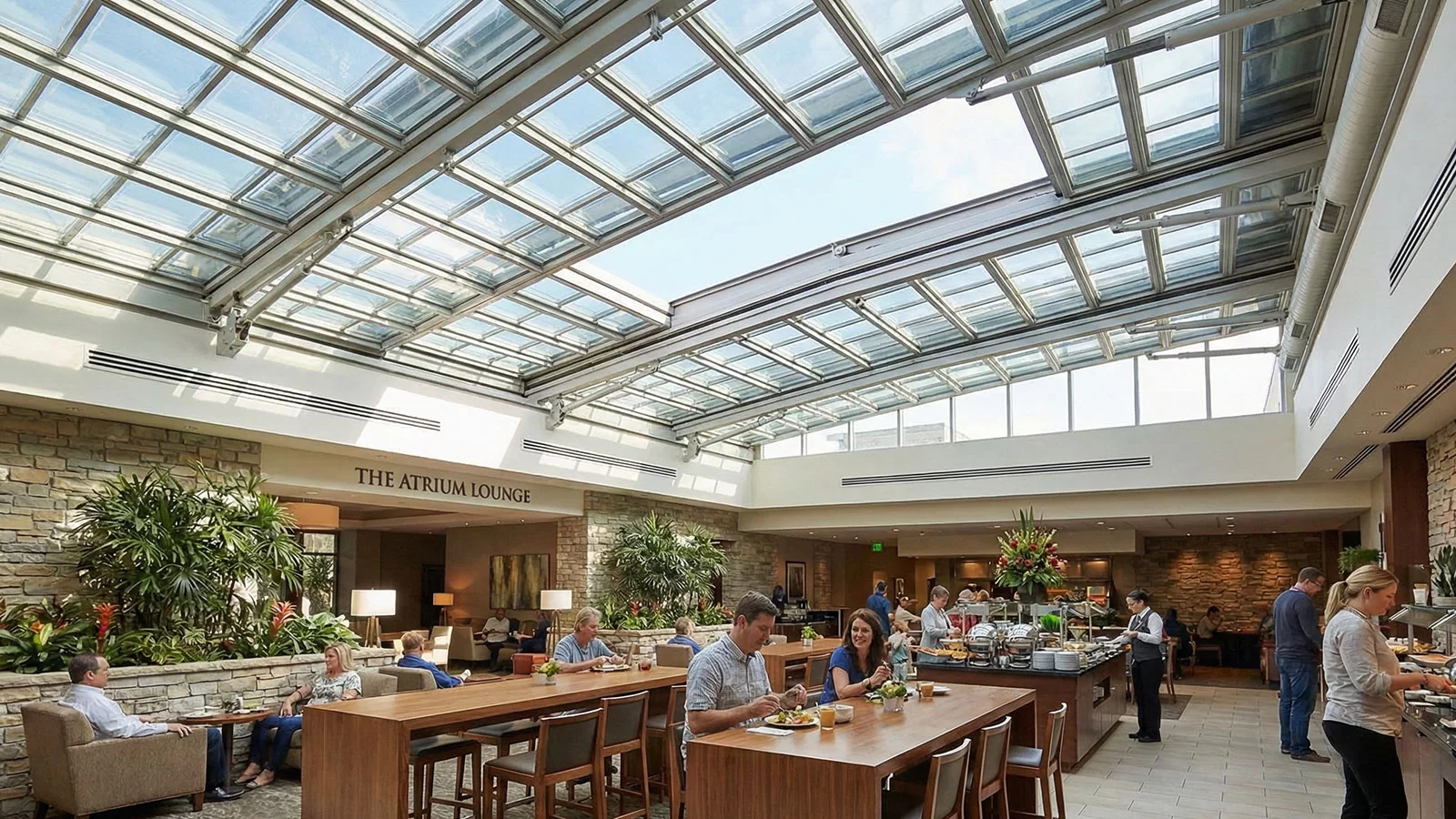

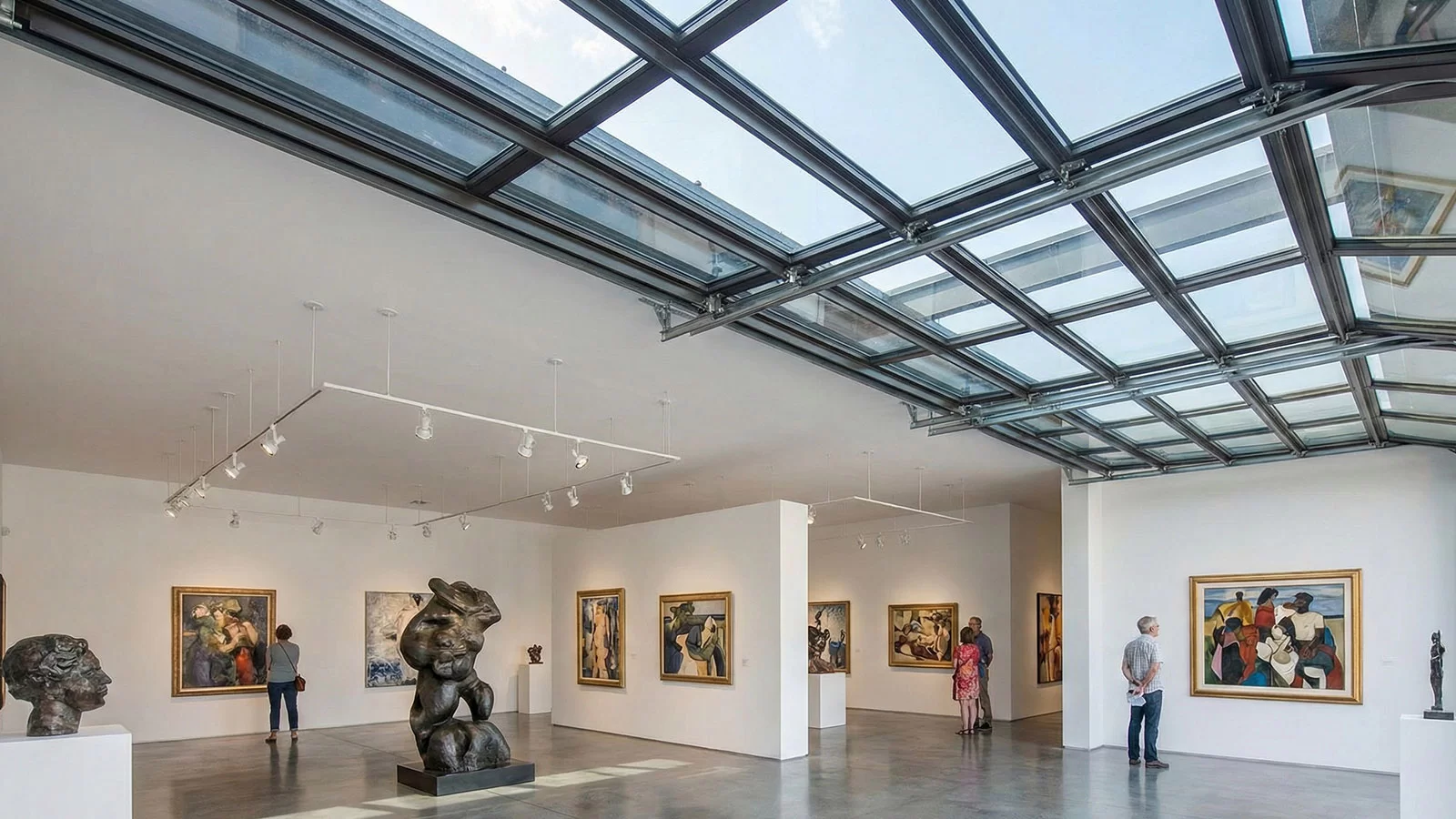

Retractable glass roofs are suited to a wide range of residential and commercial applications.
Retractable Glass Roof – Technical Specifications
Glass & Insulation
Partitions & Openings
Side Rails & Spans
Module Sizes
Movement & Hardware
Structural Profiles
Service & Maintenance
Control & Sensors
Drive & Lighting
4+16+4 mm tempered insulating glass or 4+11+4+4 mm laminated tempered double glazing. Provides thermal insulation and energy performance.
Configurable with 2, 3, 4, or 5 sliding partitions in the opening direction.
Profile dimensions: 182 × 117 × 3 mm. Can span up to 6,500 mm without additional steel construction.
Option A: Up to 2,000 × 4,000 mm.
Option B: Up to 1,350 × 8,000 mm.
Designed for big glass surfaces with minimal framing.
8 stainless steel bearings per moving panel. Integrated extra gutter system within side rails for maximum waterproofing.
Front foot: 128 × 170 × 3 mm.
Front gutter: 170 × 128 × 3 mm.
Add-on side rails allow easy modification or glass replacement without dismantling the entire system.
Remote control, wall button, or mobile phone. Optional rain, sun, and wind sensors for automatic operation.
Balanced movement via T-10 timing belt. Hidden LED lighting with dimmer control for adjustable ambience.
Retractable Glass Pergola Roof FAQ
They are ideal for terraces, rooftop decks, winter gardens, restaurants, cafés, hotel lounges, courtyards, atria, pool areas, and any semi-outdoor space where you want the option to open the roof.
Yes. With insulating glass, proper detailing, and compatible side systems (sliding, folding, or guillotine glass), retractable roofs can be part of a comfortable 4-season space.
Side rails and an extra gutter system provide maximum waterproofing, directing rainwater away from the interior.
Yes. Optional rain, sun, and wind sensors can be added, so the roof can close or adjust automatically in response to weather conditions.
You can control it via remote, wall switch, or mobile phone (depending on configuration). Multiple panels move in a synchronized way for smooth opening and closing.
No. The system is designed so that, when closed, it does not require an additional lock—it remains securely in place.
Regular cleaning of glass and profiles, checking gutters and drainage for debris, and standard inspection of moving parts. Stainless bearings and robust belts/chains help keep maintenance simple.
