What Is a PVC Pergola Roof System?
PVC pergola roof and awning systems are motorized folding roof solutions for patios, terraces, winter gardens, restaurants, cafés, and hotels. The system uses a three-layer blackout PVC membrane that moves along aluminum rails, creating waterproof, light-blocking coverage when closed and an open-air feel when retracted.
Built with aluminum profiles, stainless steel connections, remote-control operation, and optional hidden LED lighting, it offers a durable and practical roofing solution for residential and commercial outdoor spaces.
Why Choose a PVC Pergola Roof System?
A retractable PVC pergola roof is built to deliver dependable overhead coverage without permanent enclosure. When closed, it blocks light and sheds water; when opened, it folds back smoothly to restore open-sky use, ideal for long operating hours and spaces that need consistent performance.
4-Season Protection
Blackout & Comfort
Waterproof & Windproof
Durable Structure

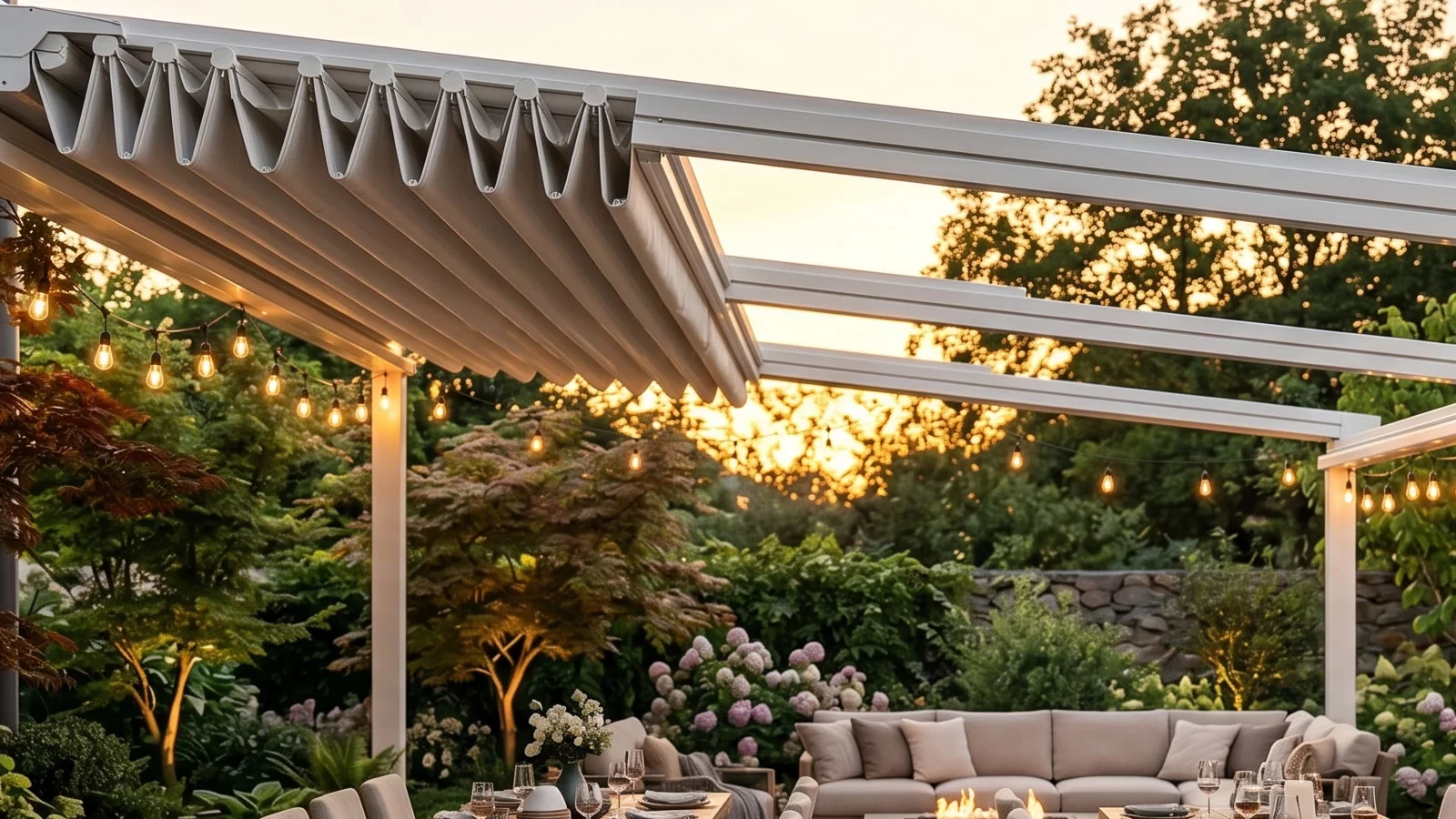

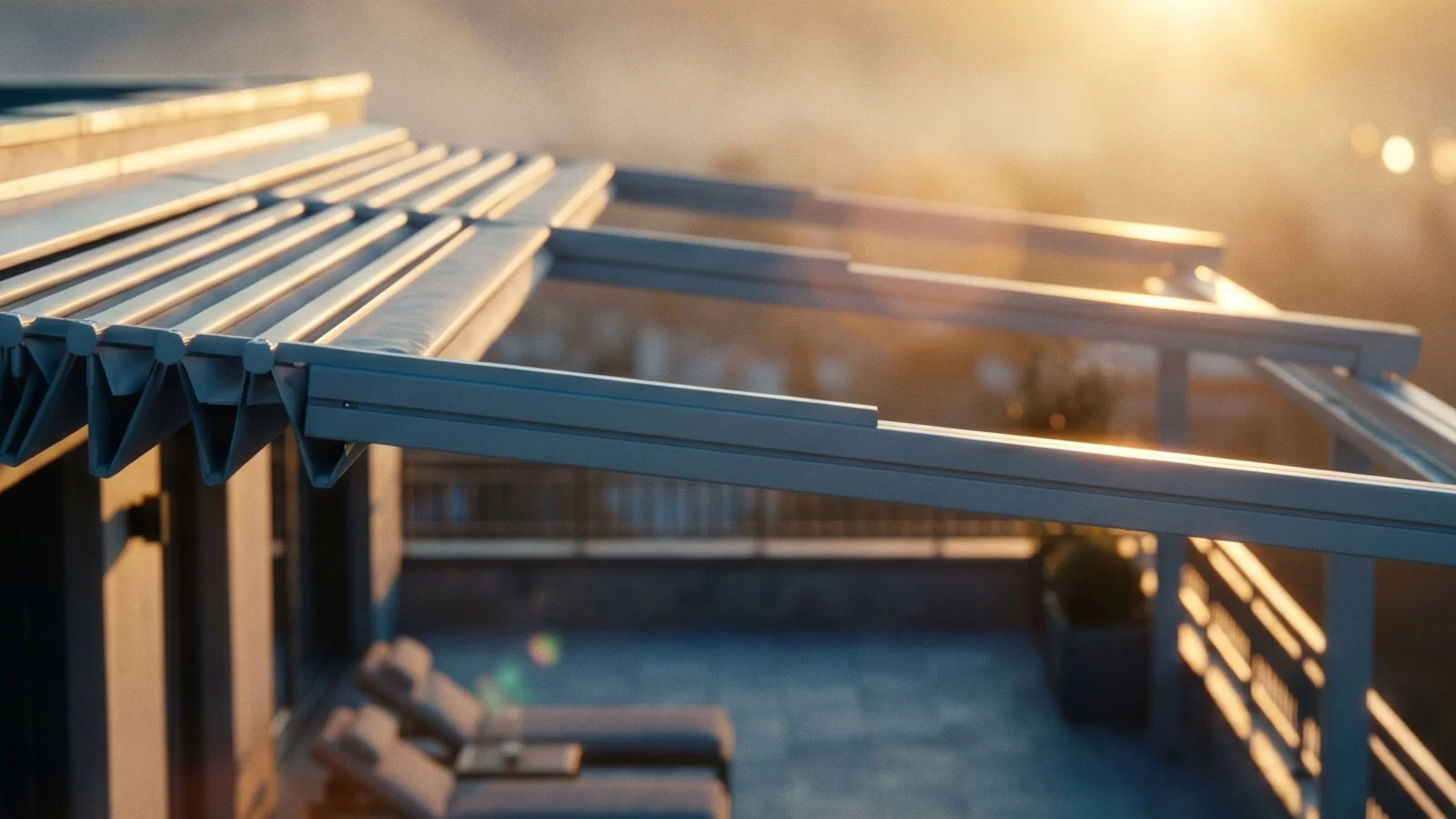

Motorized Folding Awning with Full Blackout Fabric
The PVC pergola roof uses a motorized folding awning that slides on aluminum rails at a controlled speed—close it to block sun, rain, and wind, or open it partially or fully to bring back sunlight and open-air comfort.
Operation & Control
Movement is powered by a T10 steel-reinforced timing belt and operated by a remote using RTS radio technology with approved, certified components. The motor is designed to work reliably even behind reinforced concrete walls, and an easy-access tensioner box allows quick belt adjustment—so you choose how much sky you want, and the system handles the rest.
PVC Blackout Fabric & Aluminium Structure

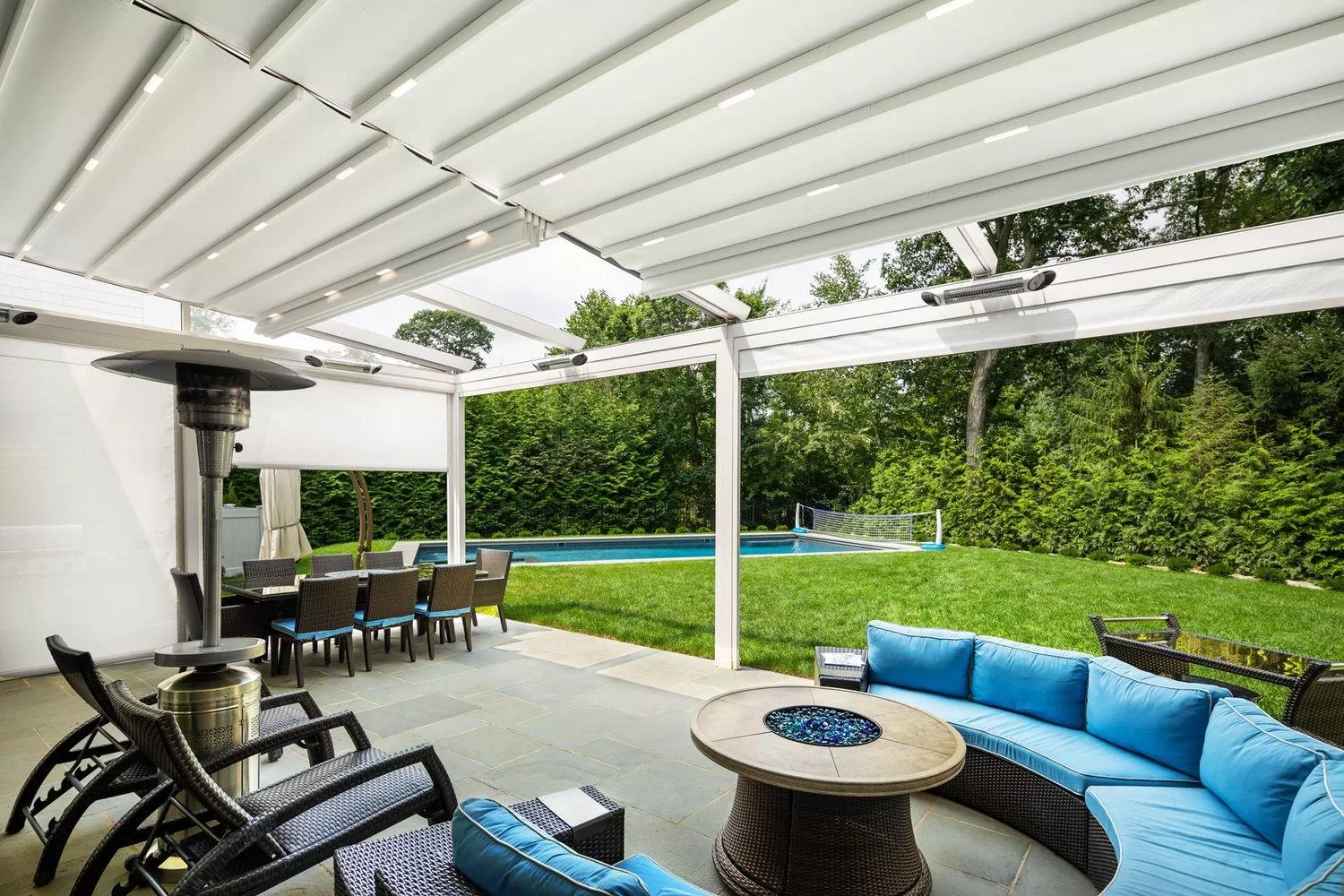

PVC Fabric
- Fabric type: Three-layer Black-Out PVC-based membrane
- Fabric weight: ≈ 25 oz/yd² (850 g/m²)
- Performance range: –22°F to 158°F (–30°C to +70°C, DIN 53361)
- Tensile strength: ≈ 7.2 / 6.3 lbf (32 / 28 N)
- Properties: waterproof, non-corrosive, lightproof, flameproof
Aluminium & Metal Components
- Carrier rail axle profiles: 6060 aluminum (honeycomb lattice), ≈ 2.95" × 4.72" × 0.08" wall (75 × 120 × 2 mm)
- Front rain evacuation corrugated beam: 6060 aluminum, ≈ 5.91" × 5.91" × 0.10" wall (150 × 150 × 2.5 mm)
- Carrier leg profiles: 6060 aluminum, ≈ 5.12" × 3.54" × 0.10" wall (130 × 90 × 2.5 mm)
- Metal construction: galvanized steel components, then finished with electrostatic paint
- Finish: electrostatic powder coating applied to all aluminum for durability and appearance
Movement & Sealing
- Roof movement: driven by a steel-reinforced T10 timing belt for controlled, consistent folding
- Sealing: water- and wind-proof wicks at aluminum-to-fabric connection points
- Drainage management: the blackout membrane includes drip-tight water collection, silicone elastic gaiters, and integrated rail drainage channels to direct water away
- Protection cover: when closed, the fabric collection area is shielded by an ≈ 33.5" trapezoidal sheet metal roof (85 cm)
Designed for Busy, All-Weather Outdoor Areas
PVC pergola roofs are ideal for both residential and commercial projects, especially where sun, rain, and wind vary throughout the year.
PVC Pergola Roof Systems – Technical Specifications
The 120, 150, and 170 systems share the same core technology and materials; their main differences relate to module size and project scale. Below are the common highlights you can show as a single tech block.
Technical Specifications
System 120
System 150
System 170
Materials + Fabric Performance
- System type: rail awning system with PVC-based three-layer blackout fabric
- Fabric weight: ≈ 25 oz/yd² (850 g/m²)
- Operating range: –22°F to 158°F (–30°C to +70°C)
- Properties: waterproof, non-corrosive, lightproof, flameproof
Weather Resistance
- Snow load: designed for ≈ 4 in snow load (10 cm)
- Wind resistance: Beaufort 6 (≈ 25–31 mph)
Structure + Drainage
- Aluminum profiles with electrostatic powder coating
- Water/wind-proof wicks at fabric-to-aluminum joint surfaces
- Drainage channels in rails + water collection elements on the blackout membrane
- Fabric collection area protected by an ≈ 33.5 in trapezoidal sheet metal roof when closed (85 cm)
Warranty
- Mechanism: 2 years
- Remote control motor: 2 years
- Blackout fabric: 2 years
Ideal for small to medium terraces and winter gardens, boutique cafés, and residential pergolas.
Suited to medium to large commercial terraces, hotel areas, and spaces where you might also close the sides with aluminium and glass.
Designed for larger spans and more demanding commercial or semi-public spaces, where structural robustness and modularity are key.
Frequently Asked Questions - PVC Pergola Roof
Yes. They’re designed for 10 cm snow load, Beaufort 6 wind, and use blackout, flameproof, weather-resistant fabric with aluminium and galvanized metal structure.
The blackout fabric is produced with HF welding, is UV-resistant, waterproof, and designed to maintain performance between –30 °C and +70 °C. Regular cleaning and proper drainage maintenance will extend its life.
Yes. With the 150 system specification, sides can be closed with aluminium joinery and glass systems, turning the pergola roof into a full 4-season outdoor room.
All models operate via RTS radio remote; the motor has long-range performance even through reinforced concrete. Control via button and integration with other systems is also possible depending on configuration.
Basic cleaning of fabric and aluminium, checking drainage channels and guttering, and occasional belt/tension adjustment through the accessible tensioner box.
